Brother HL-L2366DW
Рейтинг
Модули
FRAME L and DRIVE UNIT
COVERS and LABELS
PCB
PAPER CASSETTE
FRAME
LASER UNIT
DX
ACCESSORIES

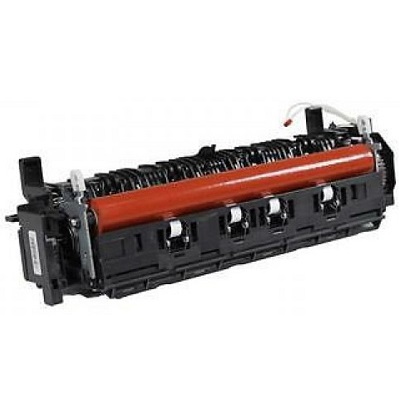

FIXING UNIT
PAPER FEEDER
Детали COVERS and LABELS
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB630001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB631001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB629001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB627001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB624001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB620001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB625001 |
Деталь: | MAIN FRAME L ASSY (SP) |
Парткод: | LJB628001 |
Деталь: | EJECT SENSOR PCB ASSY |
Парткод: | LV1288001 |
Деталь: | EJECT SENSOR PCB ASSY |
Парткод: | LV1467001 |
Деталь: | FUSER GEAR 67R/40R |
Парткод: | LY9029001 |
Цена: | 150 ₽ |
Деталь: | MAIN MOTOR |
Парткод: | LY9037001 |
Цена: | 2 100 ₽ |
Деталь: | TOP COVER ASSY (SP) |
Парткод: | LY9958001 |
Деталь: | TOP COVER ASSY (SP) |
Парткод: | LY9960001 |
Деталь: | TOP COVER ASSY (SP) |
Парткод: | LJB222001 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9483002 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9483001 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9121001 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9593001 |
Деталь: | FRONT COVER ASSY |
Парткод: | LJB184001 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9121002 |
Деталь: | FRONT COVER ASSY |
Парткод: | LY9593002 |
Деталь: | FRONT COVER ASSY |
Парткод: | LJB184002 |
Деталь: | INNER CHUTE ASSY |
Парткод: | LY9130001 |
Деталь: | INNER CHUTE ASSY |
Парткод: | LY9130002 |
Деталь: | INNER CHUTE ASSY |
Парткод: | LY9130003 |
Деталь: | FUSER COVER |
Парткод: | LY9136001 |
Деталь: | OUTER CHUTE ASSY |
Парткод: | LY9146001 |
Деталь: | BACK COVER |
Парткод: | LJB273001 |
Деталь: | BACK COVER |
Парткод: | LY9148001 |
Деталь: | BACK COVER |
Парткод: | LY9148002 |
Деталь: | BACK COVER |
Парткод: | LJB273002 |
Деталь: | BACK COVER ASSY |
Парткод: | LJB498002 |
Деталь: | BACK COVER ASSY |
Парткод: | LY9502001 |
Деталь: | SIDE COVER L |
Парткод: | LY9144002 |
Деталь: | SIDE COVER L |
Парткод: | LY9144001 |
Деталь: | SIDE COVER L |
Парткод: | LY9287002 |
Деталь: | SIDE COVER R |
Парткод: | LJB270002 |
Деталь: | SIDE COVER R |
Парткод: | LJB270001 |
Деталь: | SIDE COVER R |
Парткод: | LY9145001 |
Деталь: | SIDE COVER R |
Парткод: | LY9288001 |
Деталь: | SIDE COVER R |
Парткод: | LY9145002 |
Деталь: | SIDE COVER R |
Парткод: | LY9288002 |
Деталь: | MODEL PLATE |
Парткод: | LY9489001 |
Деталь: | MODEL PLATE |
Парткод: | LY9482001 |
Деталь: | MODEL PLATE |
Парткод: | LY9490001 |
Деталь: | MODEL PLATE |
Парткод: | LY9548001 |
Деталь: | MODEL PLATE |
Парткод: | LJB165001 |
Деталь: | MODEL PLATE |
Парткод: | LJB063001 |
Деталь: | MODEL PLATE |
Парткод: | D00JDD001 |
Деталь: | MODEL PLATE |
Парткод: | LY9329001 |
Деталь: | MODEL PLATE |
Парткод: | LJB160001 |
Деталь: | MODEL PLATE |
Парткод: | LY9549001 |
Деталь: | MODEL PLATE |
Парткод: | LJB169001 |
Деталь: | MODEL PLATE |
Парткод: | LY9550001 |
Деталь: | MODEL PLATE |
Парткод: | LJB170001 |
Деталь: | MODEL PLATE |
Парткод: | LY9377001 |
Деталь: | MODEL PLATE |
Парткод: | LJB140001 |
Деталь: | MODEL PLATE |
Парткод: | LY9374001 |
Деталь: | MODEL PLATE |
Парткод: | LJB171001 |
Деталь: | MODEL PLATE |
Парткод: | LJB142001 |
Деталь: | LABEL CAUTION FRONT 20X35 |
Парткод: | LY9407001 |
Деталь: | LABEL CAUTION FRONT US 20X100 |
Парткод: | LY9406001 |
Деталь: | LED LABEL |
Парткод: | LY9560001 |
Деталь: | LED LABEL |
Парткод: | LY9559001 |
Деталь: | PANEL PCB ASSY |
Парткод: | LV1235001 |
Деталь: | RUBBER KEY |
Парткод: | LY9935001 |
Деталь: | RUBBER KEY |
Парткод: | LY9370001 |
Деталь: | LCD COVER |
Парткод: | LY9298001 |
Деталь: | LCD |
Парткод: | A51456001 |
Деталь: | PANEL PCB ASSY |
Парткод: | LV1234001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1420001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1318001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1421001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1362001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1437001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1493001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1285001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1388001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1327001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1494001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1324001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1286001 |
Деталь: | MAIN PCB ASSY |
Парткод: | LV1495001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1229001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1444001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1231001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1429001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1436001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1432001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1443001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1433001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1474001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1466001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1484001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1419001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1435001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1471001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1470001 |
Деталь: | HIGH-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1466001 |
Деталь: | LOW-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1319001 |
Деталь: | HIGH-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1243001 |
Деталь: | HIGH-VOLTAGE POWERSUPPLY |
Парткод: | LV1243001 |
Деталь: | PCB ASSY HIGH-VOLTAGE POWERSUPPLY |
Парткод: | LV1241001 |
Деталь: | PCB ASSY HIGH-VOLTAGE POWERSUPPLY |
Парткод: | LV1243001 |
Деталь: | PCB ASSY HIGH-VOLTAGE POWERSUPPLY PCB ASSY |
Парткод: | LV1243001 |
Деталь: | PAPER TRAY |
Парткод: | LJB538012 |
Деталь: | PAPER TRAY |
Парткод: | LJB538011 |
Деталь: | PAPER TRAY |
Парткод: | LY9090011 |
Деталь: | PAPER TRAY |
Парткод: | LY9379011 |
Деталь: | PAPER TRAY |
Парткод: | LY9090012 |
Деталь: | PAPER TRAY |
Парткод: | LY9379012 |
Деталь: | FAN |
Парткод: | LY9348001 |
Цена: | 1 400 ₽ |
Деталь: | FILTER |
Парткод: | LY2141001 |
Цена: | 350 ₽ |
Деталь: | HVPS FLAT CABLE |
Парткод: | LV1226001 |
Деталь: | FLAT CABLE SPONGE |
Парткод: | LY9721001 |

Деталь: | T1 CLUTCH |
Парткод: | LY2144001 |
Цена: | 700 ₽ |

Деталь: | REGISTRATION CLUTCH |
Парткод: | LY2150001 |
Цена: | 700 ₽ |
Деталь: | NEW TONER SENSOR PCB ASSY |
Парткод: | LV1143001 |
Деталь: | WIRELESS LAN PCB |
Парткод: | LT3808001 |
Деталь: | WIRELESS LAN PCB |
Парткод: | LD1969001 |
Деталь: | GASKET |
Парткод: | LV1394001 |
Деталь: | LAN PORT CAP |
Парткод: | LY0872001 |
Деталь: | LASER UNIT (SP) |
Парткод: | LY9282001 |
Цена: | 8 400 ₽ |
Деталь: | LASER UNIT (SP) |
Парткод: | LY9955001 |
Цена: | 8 400 ₽ |
Деталь: | LASER UNIT FLAT CABLE |
Парткод: | LV1232001 |
Цена: | 310 ₽ |
Деталь: | DUPLEX TRAY |
Парткод: | LJB536011 |
Деталь: | DUPLEX TRAY |
Парткод: | LJB536012 |
Деталь: | DUPLEX TRAY |
Парткод: | LY2166011 |
Деталь: | DUPLEX TRAY |
Парткод: | LY2452011 |
Деталь: | DUPLEX TRAY |
Парткод: | LY2452012 |
Деталь: | DUPLEX TRAY |
Парткод: | LY2166012 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LV1378001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LV1379001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LV1380001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LG7005001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LG5717001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LT0921001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LG6426001 |
Деталь: | AC CORD BAG ASSY |
Парткод: | LV1381001 |
Деталь: | CD ASSY |
Парткод: | D00F1N001 |
Деталь: | CD ASSY |
Парткод: | LY9402001 |
Деталь: | CD ASSY |
Парткод: | LY9397001 |
Деталь: | CD ASSY |
Парткод: | LY9398001 |
Деталь: | CD ASSY |
Парткод: | LY9399001 |
Деталь: | CD ASSY |
Парткод: | LY9396001 |
Деталь: | CD ASSY |
Парткод: | D00HMX001 |
Деталь: | CD ASSY |
Парткод: | LY9405001 |
Деталь: | CD ASSY |
Парткод: | LY9403001 |
Деталь: | CD ASSY |
Парткод: | LY9404001 |
Деталь: | PAPER FEEDING KIT SP |
Парткод: | LJB319001 |
Деталь: | USB CABLE 2.0 |
Парткод: | LJ9803001 |
Деталь: | USB CABLE 2.0 |
Парткод: | LV1518001 |
Коды ошибок
0201
0300
0305
0401
0405
0501
0502
0503
0504
0505
0506
050A
050B
050C
050F
0600
0900
0A02
0B01
0B02
4000
4200
4B01
4C01
4D01
4E01
4F01
6001
6004
6101
6801
6901
6902
6A00
6F00
7000
7100
7300
7700
7C00
8000
8903
8904
8A01
8C00
9002
9302
9701
C700
E000
E100
E500
E600
E702
F900
Описание
Error code: | 0201 |
Display: | Print Unable 02 Turn the power off and then back on again. |
Description: | Head 2 is abnormally hot. Head 2 temperature has reached 58°C and above. |
Causes: | Thermistor (Head) has a problem. Flexible Cable has short circuitted or cut-line. |
Remedy: | Check Flexible Cable connection around Head Head replacement |
Error code: | 0300 |
Display: | POLYGON MOTOR |
Description: | Polygon motor malfunction |
Causes: | • The polygon motor does not rotate evenly even after the lapse of a given period of time after it has been started. • The motor lock signal remains HIGH for a given period of consecutive time while the polygon motor is being rotated. |
Remedy: | 1 Check the cable and connector for proper connection and correct as necessary. - - 2 Change PH unit. - - 3 Change PRCB. - - |
Error code: | 0305 |
Description: | ROM Checksum Failure |
Remedy: | Replace the system board. |
Error code: | 0401 |
Display: | Print Unable 04 Turn the power off and then back on again. |
Description: | BD sensor 1 damaged. |
Remedy: | 1 Connection failure of the polygon motor harness Reconnect the polygon motor harness. 2 Laser unit failure Replace the laser unit. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0405 |
Description: | Cannot detect the synchronized signal of the polygon motor for the laser unit (first time). |
Remedy: | 1 Connection failure of the laser unit flat cable Reconnect the laser unit flat cable. 2 Laser unit flat cable failure Replace the laser unit flat cable. 3 Laser unit failure Replace the laser unit. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0501 |
Display: | FUSER ERROR |
Description: | Fusing Pressure Roller warm-up failure • The Fusing Pressure Roller Thermistor/1 (TH2) fails to raise a given degree of temperature even after the lapse of a given period of time after the Fusing Pressure Heater Lamp (H3) is turned ON. • The detected temperature of the Fusing Pressure Roller Thermistor/1 (TH2) is lower for a given level of degree than one of the Heating Roller Thermistor/1 (TH1) after the Front Door is opened or closed, the Main Power Switch is turned ON or TROUBLE RESET is implemented. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | 1 Check the Fusing Unit for correct installation (whether it is secured in position). 2 Check the Fusing Unit, PWB-M and PU1 for proper connection and correct or change as necessary. 3 Change Fusing Unit. 4 Change PWB-M. 5 Change PU1. |
Error code: | 0502 |
Display: | Thermistor failure CODE (0502) Turn power off, on |
Description: | 0502 Thermistor Failure, 0510 Fuser Failure, and 0520 Fuser Failure 0502 Thermistor Failure The temperature detected by the thermistor does not reach an expected level after the warm-up cycle starts. |
Causes: | • Fuser, PL4.0.13 • Engine Control Board, PL13.0.20 • Power Supply, PL13.0.17 |
Remedy: | 1 Check that the Fuser is installed correctly. Does the problem persist? Go to step 2. Complete. 2 Check the Engine Control Board connectors P/J2, P/J3, and P/J6. Are the connectors seated properly? Go to step 3 Reseat the connectors. If the problem persists, go to step 3. 3 Check the Low Voltage Power Supply connectors CN3, CN5, and CN7. Are the connectors seated properly? Go to step 4. Reseat the connectors. If the problem persists, go to step 4. 4 Replace the Fuser (8-9). Does the problem persist? Go to step 5. Complete. 5 Replace the Engine Control Board. Does the problem persist? Go to step 6. Complete. 6 Replace the Power Supply. Complete. |
Error code: | 0503 |
Display: | TERMISTOR2 |
Description: | Thermistor resistance failure |
Causes: | • The difference between the temperature detected by thermistor/1 and that detected by thermistor/2 exceeds a predetermined value. |
Remedy: | 1 Change fuser unit. - - 2 For C110: 1. Main switch is turned ON. 2. Open the top cover. 3. Press the following keys in this order. ROTATE TONER key -ATTENTION key - ATTENTION key - ROTATE TONER key. 4. Main switch is turned OFF/ON. For C130n: 1. Main switch is turned ON. 2. Execute [SERVICE MENU] - [FUSER UNLOCK]. See P.103 - - 3 Change PRCB. - - 4 Change DCPU. - - |
Error code: | 0504 |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | After the center thermistor of the fuser unit was normally heated, it detected a temperature lower than the specified value. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0505 |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | The center thermistor of the fuser unit detected a temperature rise greater than the specified value within a set period of time. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0506 |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | The center thermistor of the fuser unit detected a temperature fall greater than the specified value within a set period of time. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 050A |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | The center thermistor or side thermistor of the fuser unit detected some temperature error in the hardware. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 050B |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | When the temperature of the center thermistor of the fuser unit is lower than the idle temperature, the side thermistor of the fuser unit detected a temperature higher than the specified value. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 050C |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | When the temperature of the center thermistor of the fuser unit is higher than the idle temperature, the side thermistor of the fuser unit detected a temperature lower than the specified value. |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit 2 Connection failure of the heater harness of the fuser unit 3 Harness connection failure of the eject sensor PCB 4 Harness connection failure of the low-voltage power supply PCB 5 Eject sensor PCB failure 6 Fuser unit failure 7 Low-voltage power supply PCB failure 8 Main PCB failure |
Remedy: | < User Check > - Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. 1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the harness of the center thermistor or side thermistor of the fuser unit. 2 Connection failure of the heater harness of the fuser unit Reconnect the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 4 Connection failure of the low-voltage power supply PCB harness Reconnect the low-voltage power supply PCB harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 8 Main PCB failure Replace the main PCB ASSY. |
Error code: | 050F |
Display: | Print Unable 05 Turn the power off and then back on again. |
Description: | An error occurred in the fuser unit. Print Unable 05 Turn the power off and then back on again. Print Unable 05 Turn the power off and then back on again. Print Unable 05 Turn the power off and then back on again. Print Unable 05 Turn the power off and then back on again. |
Remedy: | <User Check> • Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset.1 Connection failure of the center or side thermistor harness of the fuser unit Reconnect the center or side thermistor harness of the fuser unit. 2 Connection failure of the fuser unit heater harness Reconnect the fuser unit heater harness. 3 Connection failure of the eject sensor PCB flat cable Reconnect the eject sensor PCB flat cable. 4 Connection failure of the LVPS harness Reconnect the LVPS harness. 5 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 6 Fuser unit failure Replace the fuser unit. 7 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB ASSY. 8 Main PCB failure Replace the main PCB ASSY. <User Check> • Turn OFF the power switch. After several seconds, turn ON the power again and check that this error is reset. |
Error code: | 0600 |
Display: | Print Unable 06 Turn the power off and then back on again. |
Description: | Expanded memory (DIMM) installing error The expansion memory modules (DIMM) are not correctly mounted. |
Causes: | Improper installation expanded memory (DIMM). |
Remedy: | Improper installation expanded memory (DIMM). Check the installation of the expanded memory (DIMM). |
Error code: | 0900 |
Display: | Print Unable 09 Turn the power off and then back on again. |
Description: | FAX software incompatible detection error Incompatible FAX control PWB is installed. |
Causes: | Defective FAX software. Defective FAX control PWB. |
Remedy: | Defective FAX software. Install the fax software. Defective FAX control PWB. Replace the fax control PWB and check for correct operation. |
Error code: | 0A02 |
Display: | Print Unable 0A Turn the power off and then back on again. |
Description: | The fuser fan failure was detected. |
Causes: | 1 Harness connection failure of the main fan 2 Harness connection failure of the high-voltage power supply PCB 3 Harness connection failure between the low-voltage power supply PCB and main PCB 4 Main fan failure 5 Low-voltage power supply PCB failure 6 High-voltage power supply PCB failure 7 Main PCB failure |
Remedy: | 1 Connection failure of the fuser fan harness Reconnect the fuser fan harness. 2 Connection failure of the high-voltage power supply PCB harness Reconnect the high-voltage power supply PCB harness. 3 Fuser fan failure Replace the fuser fan. 4 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 5 High-voltage power supply PCB failure Replace the high-voltage power supply PCB ASSY. 6 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0B01 |
Display: | Print Unable 0B Turn the power off and then back on again. |
Description: | Error occurred in the high-voltage power supply PCB ASSY while the machine is in operation. |
Causes: | 1 Harness connection failure of the high-voltage power supply PCB 2 High-voltage power supply PCB failure 3 Main PCB failure |
Remedy: | < User Check > - Replace the drum unit. 1 Connection failure of the high-voltage power supply PCB harness Reconnect the high-voltage power supply PCB harness. 2 High-voltage power supply PCB failure Replace the high-voltage power supply PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 0B02 |
Display: | Print Unable 0B Turn the power off and then back on again. |
Description: | Error occurred in the high-voltage power supply PCB ASSY in the ready state. |
Causes: | 1 Harness connection failure of the high-voltage power supply PCB 2 High-voltage power supply PCB failure 3 Main PCB failure |
Remedy: | < User Check > - Replace the drum unit. 1 Connection failure of the high-voltage power supply PCB harness Reconnect the high-voltage power supply PCB harness. 2 High-voltage power supply PCB failure Replace the high-voltage power supply PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 4000 |
Display: | Supplies Drum End Soon. |
Description: | Command Communication Error. |
Causes: | The communication error occurs when the IC4 or IC22 on the Main Board is broken. And it causes the Motor Error. |
Remedy: | Replace the Main Board. |
Error code: | 4200 |
Display: | Supplies Replace Drum |
Description: | BD steady-state error The BD signal is not detected. |
Causes: | APC PWB (LSU). Main/Engine PWB. |
Remedy: | APC PWB (LSU) 1. Confirm that the FCC wiring connector is not distorted and connect the FCC wiring all the way in. Laser scanner unit and main/engine PWB (YC2010) 2. If the FCC wiring is disconnected, shorted or grounded, replace the FCC wiring. 3. Replace the laser scanner unit. Main/Engine PWB 1. Check the main/engine software and upgrade to the latest, if necessary. 2. Replace the main/engine PWB. |
Error code: | 4B01 |
Display: | Supplies Toner Low:BK |
Description: | Dot counter of the toner cartridge (Black) or develop roller counter reaches the upper limit soon. |
Causes: | 1 Main PCB failure if the error code remains after replacing with a new toner cartridge and resetting the toner counter |
Remedy: | < User Check > - Prepare a new toner cartridge. 1 New toner actuator coming off Re-assemble the new toner actuator. 2 Connection failure of the new toner sensor PCB harness Reconnect the toner/new sensor PCB harness. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 4C01 |
Display: | Replace Toner Open the Top Cover, replace Toner Cartridge. Black (BK). |
Description: | Dot counter of the toner cartridge (Black) or develop roller counter has reached the upper limit was detected. |
Causes: | 1 Process drive unit damaged 2 Main PCB failure if the error code remains after replacing with a new toner cartridge and resetting the toner counter |
Remedy: | < User Check > - Replace the toner cartridge whose counter reached the upper limit. 1 Main PCB failure if the error code remains after replacing with a new toner cartridge and resetting the toner counter Replace the main PCB ASSY. |
Error code: | 4D01 |
Display: | Replace Toner |
Description: | Dot count or develop roller counter of the toner cartridge in models without toner box is reaching the upper limit in the continuous printing mode. |
Remedy: | <User Check> • Replace the toner cartridge whose counter reached the upper limit. 1 Replace the toner cartridge or toner box with a new one and reset the toner counter. If the error display is not cleared, the main PCB is faulty. Replace the main PCB ASSY. |
Error code: | 4E01 |
Display: | Toner Ended Open the Front Cover, replace Toner Cartridge. |
Description: | Toner cartridge in models without toner box has reached the upper limit in the continuous printing mode. |
Remedy: | <User Check> • Replace the toner cartridge whose counter reached the upper limit. 1 Replace the toner cartridge or toner box with a new one and reset the toner counter. If the error display is not cleared, the main PCB is faulty. Replace the main PCB ASSY. |
Error code: | 4F01 |
Display: | Cartridge Error Put the Toner Cartridge back in. |
Description: | The new toner sensor of the toner cartridge (Black) could not detect a new cartridge properly. |
Causes: | 1 Main PCB failure if the error code remains after replacing with a new toner cartridge and resetting the toner manual |
Remedy: | < User Check > - Replace the toner cartridge with a new toner cartridge again. - If the place where the machine is installed is not flat, relocate the machine to a flat place. 1 Connection failure of the new toner sensor PCB harness Reconnect the toner/new sensor PCB harness. 2 New toner actuator that has come off or that has been caught Re-assemble the new toner actuator. 3 New toner sensor failure Replace the toner/new sensor PCB ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 6001 |
Display: | Cover is Open Close the Front Cover. |
Description: | The front cover sensor detected that the front cover was open. |
Causes: | 1 High-voltage power supply PCB harness connection failure 2 Top cover sensor failure 3 Main PCB failure |
Remedy: | < User Check > - Close the front cover. 1 Connection failure of the front cover sensor harness Reconnect the front cover sensor harness. 2 Front cover failure Replace the front cover. 3 Front cover sensor failure Replace the front cover sensor. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 6004 |
Display: | Cover is Open Close the Back Cover of the machine. |
Description: | Engine board error When a communication error in the Engine Board (PWB-A) is detected |
Causes: | • Engine Board (PWB-A) |
Remedy: | 1 Replace the PWB-A. |
Error code: | 6101 |
Display: | No Toner Open the Front Cover, then install Toner Cartridge. Black (BK). |
Description: | Wrapping Jam |
Causes: | Fixing Delivery Sensor SR3, Duplex Reverse Sensor SR21 |
Remedy: | Pickup Cassette of the host machine |
Error code: | 6801 |
Display: | Cooling Down Wait for a while |
Description: | The internal temperature sensor or side thermistor of the fuser unit detected a temperature higher than the specified value. |
Causes: | 1 Internal temperature sensor harness connection failure 2 Eject sensor PCB harness connection failure 3 Eject sensor PCB failure 4 Main PCB failure |
Remedy: | < User Check > - Decrease the room temperature. - Place the machine away from a heater. 1 Connection failure of the internal temperature sensor harness Reconnect the internal temperature sensor harness. 2 Side thermistor of the fuser unit failure Replace the fuser unit. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 6901 |
Display: | Self-Diagnostic Turn the power off, then on again. Leave the machine for 15 min. |
Description: | Some fuser unit errors occurred at power-ON or upon recovery from sleep mode. |
Causes: | 1 Each harness connection failure of the fuser unit 2 Eject sensor PCB harness connection failure 3 Fuser unit failure 4 Eject sensor PCB failure 5 Low-voltage power supply PCB failure 6 Main PCB failure |
Remedy: | 1 Connection failure of each harness of the fuser unit Reconnect each harness of the fuser unit. 2 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 3 Fuser unit failure Replace the fuser unit. 4 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 5 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 6 Main PCB failure Replace the main PCB ASSY. Note: - Turn OFF the power switch. After checking that the fuser unit has cooled sufficiently, turn ON the power switch again and leave the machine for ten minutes. This problem may then be cleared. - To clear the fuser unit error after the remedy of the error is taken, enter the maintenance mode and then exit from the maintenance mode using Function code 99. |
Error code: | 6902 |
Display: | Self-Diagnostic Will Automatically Restart within 15 minutes. |
Description: | After the errors was detected at the fuser unit, power was turned ON again and the error is being checked. (If power is turned OFF and ON after error code 6901 occurred, this code is displayed for about 15 minutes.) |
Causes: | 1 Each harness connection failure of the fuser unit 2 Eject sensor PCB harness connection failure 3 Fuser unit failure 4 Eject sensor PCB failure 5 Low-voltage power supply PCB failure 6 Main PCB failure |
Remedy: | 1 Connection failure of each harness of the fuser unit Reconnect each harness of the fuser unit. 2 Connection failure of the eject sensor PCB harness Reconnect the eject sensor PCB harness. 3 Fuser unit failure Replace the fuser unit. 4 Eject sensor PCB failure Replace the eject sensor PCB ASSY. 5 Low-voltage power supply PCB failure Replace the low-voltage power supply PCB unit. 6 Main PCB failure Replace the main PCB ASSY. Note: - Turn OFF the power switch. After checking that the fuser unit has cooled sufficiently, turn ON the power switch again and leave the machine for ten minutes. This problem may then be cleared. - To clear the fuser unit error after the remedy of the error is taken, enter the maintenance mode and then exit from the maintenance mode using Function code 99. |
Error code: | 6A00 |
Display: | Drum ! Slide the Blue tab on Drum Unit. |
Description: | Electric discharge that may be caused by dirt on the corona wire of the drum unit was detected. |
Causes: | 1 Dirt on the GRID terminals of the main body 2 Dirt on the terminal of the high-voltage power supply PCB 3 High-voltage power supply PCB failure 4 Main PCB failure |
Remedy: | < User Check > - Clean the corona wire by sliding the blue tab of the drum unit for all four colors several times. - Clean the terminal of the drum unit. - Replace the drum unit. 1 Dirt on the GRID terminals of the main body Clean the GRID terminals of the main body. 2 Dirt on the terminal of the high-voltage power supply PCB Clean the terminal of the high-voltage power supply PCB. 3 High-voltage power supply PCB failure Replace the high-voltage power supply PCB ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 6F00 |
Display: | Print Unable ZC Turn the power off and then back on again. |
Description: | Machine detected that supplied power was unstable. (Less than 100 times) |
Causes: | 1 Connection failure of the center or side thermistor harness of the fuser unit. 2 Connection failure of the heater harness of the fuser unit. 3 Connection failure of the eject sensor PCB harness. 4 Connection failure of the lowvoltage power supply PCB harness. 5 Eject sensor PCB failure. 6 Fuser unit failure. 7 Low-voltage power supply PCB failure. 8 Main PCB failure. |
Remedy: | < User Check > - Turn the power switch OFF/ON. - Insert the filter into the power supply. 1 The power supply waveform is incorrect Install a voltage stabilizer in the power supply part. |
Error code: | 7000 |
Display: | Jam Inside Open the Front Cover, pull out all four drum and toner cartridge assemblies and remove the jammed paper. |
Description: | Toner motor problem The rated speed achievement signal won’t turn to L in 5 s since the motor is activated. The rated speed achievement signal turns to H every other 5 s after the machine is stabilized. |
Causes: | Poor contact in the connector terminals. Broken the gear. Defective toner motor M/C/Y/BK. Defective engine PWB. |
Remedy: | Poor contact in the connector terminals. Check the connection of connector YC30 on the engine PWB and the connector on the toner motor, and the continuity across the connector terminals. Repair or replace if necessary. Broken the gear. Check visually and replace the gear if necessary. Defective toner motor M/C/Y/BK. Run maintenance item U135 and check if the toner motor operates. If not, replace the toner motor. Defective engine PWB. Replace the engine PWB and check for correct operation. |
Error code: | 7100 |
Display: | Jam Rear Open the Back Cover and remove the jammed paper, then press [Start]. |
Description: | Toner sensor error Sensor output value of 8 or less. |
Causes: | Toner sensor. Toner motor. Main/Engine PWB. |
Remedy: | Toner sensor 1. Check the toner sensor output by U150. 2. Confirm that the wiring connector is firmly connected and, if necessary, connect the connector all the way in. Toner sensor and main/engine PWB (YC9) 3. If the wiring is disconnected, shorted or grounded, replace the wiring. 4. Check that the gears of the Developer unit are not damaged and the spiral can rotate. 5. Replace the Developer unit. Toner motor 1. Draw out the toner container and execute U135 to check the toner motor operation. 2. Check the drive gear can rotate or they are not unusually loaded and, if necessary, replace. 3. Confirm that the wiring connector is firmly connected and, if necessary, connect the connector all the way in. Toner motor and main/engine PWB (YC12) 4. If the wiring is disconnected, shorted or grounded, replace the wiring. 5. Replace the Toner motor. Main/Engine PWB 1. Check the main/engine software and upgrade to the latest, if necessary. 2. Replace the main/engine PWB. |
Error code: | 7300 |
Display: | Jam Tray 1 Pull the paper tray1 completely out of the machine and remove the jammed paper. |
Description: | Toner sensor problem • While the toner container sensor is on, the toner sensor in the developing unit does not turn on after the toner sensor turns off and toner is replenished from the toner container. |
Causes: | Defective toner sensor. Poor contact in the toner sensor connector terminals. Defective toner container sensor. Defective toner container. |
Remedy: | Replace the toner sensor. Reinsert the connector. Also check for continuity within the connector cable. If none, remedy or replace the cable. Replace the toner container sensor. Replace the toner container. |
Error code: | 7700 |
Display: | Jam 2-sided Pull the paper tray completely out of the machine. Check inside the machine towards the rear. Or open the Back Cover to remove the jammed paper. |
Description: | Offset drum sensor detection error • A pulse signal is not entered to ASIC (U7) on the engine controller PWB from the offset drum sensor. |
Causes: | Defective drum PWB (KP-813). Defective engine controller PWB (KP-801). Defective harness (S02575) between engine controller PWB (KP-801) and drum unit, or poor contact of the connector terminals. |
Remedy: | Defective drum PWB (KP-813). Replace the drum unit. Defective engine controller PWB (KP-801). Replace the engine controller PWB (KP- 801). Defective harness (S02575) between engine controller PWB (KP-801) and drum unit, or poor contact of the connector terminals. Check the continuity of the harness (S02575). Check the insertion of connectors. |
Error code: | 7C00 |
Display: | Cover is Open Make sure there is no paper jammed inside the machine and close the Back Cover, then press Start. |
Description: | The eject sensor was ON when the power switch was turned ON. |
Remedy: | <User Check> • Close the back cover correctly. 1 Eject actuator caught in sections of the machine Reattach the eject actuator. 2 Fuser cover attachment failure Reattach the fuser cover. 3 Back cover attachment failure Reattach the back cover. 4 Eject sensor failure Replace the eject sensor PCB ASSY. 5 Main PCB failure Replace the main PCB ASSY. |
Error code: | 8000 |
Display: | Print Overrun |
Description: | Finisher incompatible detection error The finisher has been installed with a device to which it is incompatible. |
Causes: | The finisher is installed with a device to which it is incompatible. |
Remedy: | The finisher is installed with a device to which it is incompatible. The finisher must be installed with the devices to which it is compatible. |
Error code: | 8903 |
Display: | 2-sided Disabled Close the Back Cover of the Machine. |
Description: | The back cover sensor detected the open state when 2-sided printing is started. (before the registration of printing in the engine) |
Causes: | 1 Back cover sensor harness connection failure 2 Back cover sensor installation failure 3 Breakage of boss that presses the back cover sensor 4 Back cover sensor failure 5 Main PCB failure |
Remedy: | < User Check > - Close the back cover. 1 Connection failure of the back cover sensor harness Reconnect the back cover sensor harness. 2 Back cover sensor installation failure Re-assemble the back cover sensor. 3 Breakage of boss that presses the back cover sensor Replace the back cover. 4 Back cover sensor failure Replace the back cover sensor ASSY. 5 Main PCB failure Replace the main PCB ASSY. |
Error code: | 8904 |
Display: | 2-sided Disabled Close the Back Cover of the Machine. |
Description: | The back cover sensor detected the open state during 2-sided printing. (after the registration of printing in the engine) |
Causes: | 1 Back cover sensor harness connection failure 2 Back cover sensor installation failure 3 Breakage of boss that presses the back cover sensor 4 Back cover sensor failure 5 Main PCB failure |
Remedy: | < User Check > - Close the back cover. 1 Connection failure of the back cover sensor harness Reconnect the back cover sensor harness. 2 Back cover sensor installation failure Re-assemble the back cover sensor. 3 Breakage of boss that presses the back cover sensor Replace the back cover. 4 Back cover sensor failure Replace the back cover sensor ASSY. 5 Main PCB failure Replace the main PCB ASSY. |
Error code: | 8A01 |
Display: | Size Error 2-sided Specify the correct paper. |
Description: | The registration rear sensor detected that the fed paper was larger or smaller than the specified size in 2-sided printing. |
Causes: | 1 Registration rear actuator catching on some position 2 Registration rear sensor failure 3 Main PCB failure |
Remedy: | < User Check > - Use the Letter to Legal size paper. 1 Registration rear actuator caught on some position Re-assemble the registration rear actuator. 2 Registration rear sensor failure Replace the registration front/rear sensor PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 8C00 |
Display: | Manual Feed Load paper. |
Description: | There is no paper set in the manual feed slot on the manual feed slot printing. |
Causes: | 1 Registration front/rear/manual feed sensor PCB harness connection failure 2 Manual feed actuator catching on some position 3 Manual feed sensor failure 4 Main PCB failure |
Remedy: | <User Check> • Set the paper in the manual feed slot. 1 Registration front actuator caught in some sections of the machine Reattach the registration front actuator. 2 Connection failure of the registration front/rear sensor PCB harness Reconnect the registration front/rear sensor PCB harness. 3 Registration front sensor failure Replace the actuator holder ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 9002 |
Display: | Size mismatch Reload correct paper in Tray1,then press [Retry]. |
Description: | The size of paper loaded in the paper tray 1 and the one specified from the driver are not same when paper is fed from the paper tray 1. |
Causes: | 1 Registration rear actuator catching on some position 2 Registration rear sensor failure 3 Main PCB failure |
Remedy: | < User Check > - When specifying the paper in the driver, set the paper size of the paper that is actually set. 1 Registration rear actuator caught on some position Re-assemble the registration rear actuator. 2 Registration rear sensor failure Replace the registration front/rear sensor PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
Error code: | 9302 |
Display: | No Paper Reload paper in Tray 1. |
Description: | When paper was fed from the paper tray 1, the T1 paper feed sensor detected that no paper was in the paper tray 1. |
Causes: | 1 Foreign object in pick-up roller 2 Paper feed sensor PCB harness connection failure 3 Paper feed actuator catching on some position 4 Paper feed sensor failure 5 Gear failure inside of process drive unit 6 Main PCB failure |
Remedy: | < User Check > - Load paper to the paper tray. 1 T1 paper feed actuator caught on some position Re-assemble the T1 paper feed actuator. 2 Connection failure of the T1 paper feed sensor PCB harness Reconnect the T1 paper feed sensor PCB harness. 3 T1 paper feed sensor failure Replace the T1 paper feed sensor PCB ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
Error code: | 9701 |
Display: | Size Error 2-sided Press [OK]. Specify the correct paper and load the same size paper as the Printer driver setting. |
Description: | For 2-sided printing, the tray whose paper size was not supported by 2-sided printing was selected. |
Causes: | 1 Main PCB failure |
Remedy: | < User Check > - The size of the paper specified from the driver shall be A4 or Letter size and load the same size of paper to the specified paper tray. 1 Main PCB failure Replace the main PCB ASSY. |
Error code: | C700 |
Display: | Out of Memory Press Stop Key |
Description: | The memory is insufficient to expand the data of PC-Print. |
Causes: | Main PCB failure |
Remedy: | < User Check > - Print the print data stored in the memory. - Divide the print data and print it. 1 Main PCB failure Replace the main PCB ASSY. |
Error code: | E000 |
Display: | E000 |
Description: | Fuser Temperature Rising Error |
Causes: | The temperature of Fuser does not rise up to 50C. |
Remedy: | Error clearance 1 Have you cleared the fuser error in the Error Clear Mode? Yes Wait until the Fuser Unit is enough cooled down. Then select the Error Clear Mode and clear the concerning error. Wires 2 Are wires among Lamp (H1), Solid State Relay (SSR1) and Thermistors (TH1 & TH2) connected properly? No Connect them properly. Lamp (H1) 3 Unplug the machine, and then check the resistance of Lamp (H1) with the multimeter. Is it 15 ohm or lower? No Replace the Lamp. Thermistors (TH1 & TH2) 4 Select the Information Mode, and then check the temperature of fuser detected by Thermistors (TH1 & TH2). Item No. : 00 (Fuser temperature 1) 01 (Fuser temperature 2) Is each temperature normal? No Replace the concerning Thermistor. Confirm that the machine is turned on, and then check the voltage of the orange line (J220-4). Is it 24V? No Replace the DC Power Supply if there is no problem with the wires. DC Power Supply (DCP1) or Fuse 5 Confirm that the machine is turned off, and then check whether or not each Fuse is broken. Is any Fuse broken? Yes Replace the Fuse. Relay (RY1) 6 Select the Device Operation Mode, and then change the signal of the following signal to “H”. Signal Code : 22 (Fuser Relay) And check the resistance between the following points. Between RY1-2 and RY1-4 Between RY1-6 and RY1-8 Is the each resistance almost 0 ohm? No Replace the Relay. Solid State Relay (SSR1) 7 Select the Device Operation Mode, and then change the signal of the following signals to “H”. Signal Code : 22 (Fuser Relay) 21 (Fuser Lamp 1) Then check the voltage between J105-1 and J105-2. Is it 0V? Refer to the page 8-16 as for the Device Operation Mode.) CAUTION Change the signal of “21” (Fuser Lamp 1) to “L” after checking! No Replace the PW10520 PWB. Yes Replace the Solid State Relay |
Error code: | E100 |
Display: | E100 error Vacuum pump |
Description: | Abnormal condition in vacuum pump. |
Causes: | • PH Unit • PH Interface Board (PWB-D) • Mechanical Control Board (PWB-M) |
Remedy: | (1) MAIN board assembly may be damaged. * Replace MAIN board assembly. |
Error code: | E500 |
Display: | Print Unable E5 Turn the power off and then back on again. |
Description: | MAIN MOTOR failure MOTOR ASSY is not turning, or not turning normally. |
Causes: | • Main Motor (M1) • Mechanical Control Board (PWB-M) • DC Power Supply (PU1) |
Remedy: | 1. Connectors on LVPS and MCU Board Assy are correctly connected? 2. Check the connections between MAIN MOTOR <=> LVPS <=> MCU Board Assy. Disconnection/slant connection of a connector Disconnection/damage of a harness. 3. MAIN MOTOR is not turning normally due to an abnormal load on it. Check GEAR ASSY HOUSING`s Drive Transmission Path. 4. Replace MAIN MOTOR. 5. Replace LVPS. 6. Replace MCU Board Assy. |
Error code: | E600 |
Display: | Print Unable E6 Turn the power off and then back on again. |
Description: | Cyan TCR Sensor adjustment failure - TCR Sensor automatic adjustment does not function properly, failing to adjust to an appropriate value. |
Causes: | • Photoconductor Unit /C • Photoconductor Unit /M • Photoconductor Unit /Y • Toner Supply Motor Y/M (M6) • Toner Supply Motor C/K (M7) • Mechanical Control Board (PWB-M) • Controller Board (PWB-P) |
Remedy: | 1 Clean the TCR Sensor window on the underside of the Photoconductor Unit if dirty - - 2 M6, M7 operation check PWB-M CNDM2-10 to 13 (M6) PWB-M CNDM3-10 to 13 (M7) C-22 C-23 3 Reinstall Photoconductor Unit - - 4 Change Photoconductor Unit - - 5 Change PWB-M - - 6 Change PWB-P |
Error code: | E702 |
Display: | Print Unable E7 Turn the power off and then back on again. |
Description: | Standard cassette Elevator failure - The Lift-Up Sensor is not blocked even after the lapse of a given period of time after the lifting motion has been started. |
Causes: | • Lift-up Sensor (PC7-PC) • Lift-up Sensor (PC7-PC) • Control Board (PWB-Z-PC) |
Remedy: | 1 Check the M3-PC connector for proper connection and correct as necessary. - - 2 Check the connector of M3-PC for proper drive coupling and correct as necessary. - - 3 PC7-PC I/O check, Sensor check PWB-Z PJ6Z PC-3 (ON) PWB-Z PJ4Z PC-4 to 5 V-21 to 22 4 M3-PC operation check Q-24 5 Change PWB-Z-PC. |
Error code: | F900 |
Description: | Model information error |
Remedy: | Setting Recover the machine information by means of the following procedure. Notes: The following procedure is supported in the firmware with the version “2050” or later. If the version is before “2050”, first upgrade it to “2050” or later with [4] + [9] → [1] for “SYSTEM FIRMWARE (OS Data)”. <Machine information recovery> 1. Turn the power ON while pressing [6] and the [CLEAR] button simultaneously. 2. Key in [3] to select “3. SRAM Re-Initialize Support”, and then press the [START] button. 3. After the operation is completed, shut down the equipment by pressing the [ON/OFF] button. * If it is not recovered, perform the following procedure. 4. Turn the power ON while pressing [3] and the [CLEAR] button simultaneously. 5. Enter the password on the Authentication screen. If no password is set for Service, press the [OK] button without entering anything. If the High Security Mode has been set, enter “#1048#”. 6. Key in [5] to select “5. Key Backup Restore”, and then press the [START] button. 7. Key in [2] to select “2. Key FROM to SRAM”, and then press the [START] button. 8. After the operation is completed, shut down the equipment by pressing the [ON/OFF] button. |
