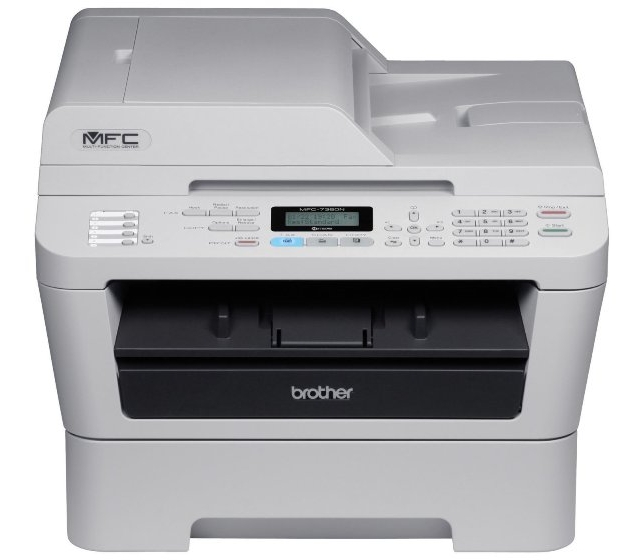

Brother MFC-7360
Рейтинг
Модули
PAPER FEEDER
FRAME L & DRIVE UNIT
FUSER UNIT
PAPER CASSETTE
SCANNER UNIT
(Электронные компоненты)
DX
ADF UNIT & DOCUMENT COVER ASSY
PERIODICAL MAINTENANCE
PANEL
FRAME
LASER UNIT
COVERS & LABELS
PCB
Детали FUSER UNIT
| Деталь: | PF FRAME ASSY, DCP7055/ DCP7057/ DCP7057E/ DCP7060D/ MFC7360/ MFC7360N/ MFC7362N |
| Парткод: | LY2087001 |
| Деталь: | PF FRAME ASSY, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LY2312001 |
| Деталь: | REGIST FRAME ASSY, DCP7055/ DCP7057/ DCP7057E/ MFC7360/ MFC7360N/ MFC7362N |
| Парткод: | LY2482001 |
| Деталь: | REGIST FRAME ASSY, DCP7060D/ DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LY2101001 |
| Деталь: | PICK-UP ROLLER HOLDER ASSY |
| Парткод: | LY2093001 |
| Деталь: | MAIN FRAME L ASSY, DCP7055 EXCEPT FOR CHN/ RUS, DCP7057/ DCP7057E/ MFC7360 FOR ALL COUNTRIES |
| Парткод: | LX5095001 |
| Деталь: | MAIN FRAME L ASSY, DCP7055 FOR CHN/ RUS |
| Парткод: | LX5827001 |
| Деталь: | MAIN FRAME L ASSY, DCP7060D/ MFC7470D |
| Парткод: | LX5175001 |
| Деталь: | MAIN FRAME L ASSY, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5001001 |
| Деталь: | MAIN FRAME L ASSY, MFC7360N/ MFC7362N |
| Парткод: | LX5278001 |
| Деталь: | PAPER EJECT SENSOR PCB ASSY |
| Парткод: | LV0579001 |
| Деталь: | FUSER GEAR 28/ 34 |
| Парткод: | LY2010001 |
| Деталь: | MAIN MOTOR |
| Парткод: | LY2054001 |
| Цена: | 1 900 ₽ |
| Деталь: | DEVELOP DRIVE SUB ASSY |
| Парткод: | LY2067001 |
| Деталь: | SCREW BIND M3X4 |
| Парткод: | 300416 |
| Деталь: | TAPTITE BIND B M4X12 |
| Парткод: | LU5693001 |
| Деталь: | INTERNAL TEMPERATURE SENSOR |
| Парткод: | LT1130001 |
| Деталь: | DEVELOP GEAR JOINT/ 52 |
| Парткод: | LY2070001 |
| Деталь: | FUSER UNIT 115V (SP) |
| Парткод: | LY2487001 |
| Деталь: | FUSER UNIT 230V (SP) FOR CHN |
| Парткод: | LY3454001 |
| Деталь: | FUSER UNIT 230V (SP) EXCEPT FOR CHN |
| Парткод: | LY3704001 |
| Цена: | 13 600 ₽ |
| Деталь: | TAPTITE PAN B M4X14 |
| Парткод: | LJ0395001 |
| Деталь: | PAPER TRAY, DCP7055/ MFC7360/ MFC7360N FOR US/ CAN/ ARG/ CHL/ TWN/ ASA/ BRA/ IND/ MEX |
| Парткод: | LX5007003 |
| Деталь: | PAPER TRAY, DCP7060D/ DCP7065DN/ HL2280DW/ MFC7460DN/ MFC7860DW FOR US/ CAN/ PHL/ TWN/ ARG/ CHL/ ASA/ BRA/ IND |
| Парткод: | LX5007001 |
| Деталь: | PAPER TRAY, DCP7060D/ DCP7065DN/ DCP7070DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW EXCEPT FOR US/ CAN/ PHL/ TWN/ ASA/ ARG/ CHL/ BRA/ IND |
| Парткод: | LX5199001 |
| Цена: | 3 400 ₽ |
| Деталь: | PAPER TRAY, DCP7055/ DCP7057/ DCP7057E/ MFC7360/ MFC7360N EXCEPT FOR US/ CAN/ ARG/ CHL/ TWN/ ASA/ BRA/ IND/ MEX |
| Парткод: | LX5199003 |
| Цена: | 3 000 ₽ |
| Деталь: | PAPER TRAY, MFC7362N |
| Парткод: | LX5199004 |
| Деталь: | GEAR Z19M10 |
| Парткод: | LR0252001 |
| Деталь: | LIFT GEAR 46 |
| Парткод: | LY2202001 |
| Деталь: | SEPARATION PAD SPRING 2 |
| Парткод: | LY2207001 |
| Деталь: | SEPARATION PAD ASSY |
| Парткод: | LY2208001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7060D/ DCP7070DW/ HL2280DW EXCEPT FOR CHN |
| Парткод: | LEA214001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), MFC7362N |
| Парткод: | LX5893004 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7055 FOR CHN |
| Парткод: | LEA301003 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7060D FOR CHN |
| Парткод: | LEA301001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), MFC7360 FOR CHN |
| Парткод: | LEA287003 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LEA287001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7055/ DCP7057/ DCP7057E EXCEPT FOR CHN |
| Парткод: | LEA214003 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7060D/ DCP7065DN/ MFC7460DN/ MFC7860DN/ MFC7860DW EXCEPT FOR CHN |
| Парткод: | LX5893001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7055/ MFC7360/ MFC7360N EXCEPT FOR CHN |
| Парткод: | LX5893003 |
| Деталь: | ADF CLEAN UP LABEL, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5186001 |
| Деталь: | LASER UNIT (SP) |
| Парткод: | LU9801001 |
| Цена: | 9 400 ₽ |
| Деталь: | DUPLEX TRAY, DCP7060D/ DCP7065DN/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DW FOR US/ CAN/ PHL/ ARG/ CHL/ BRA |
| Парткод: | LY2166001 |
| Деталь: | DUPLEX TRAY, DCP7060D/ DCP7065DN/ DCP7070DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW EXCEPT FOR US/ CAN/ PHL/ ARG/ CHL/ BRA |
| Парткод: | LY2452001 |
| Деталь: | ADF UNIT (SP), DCP7065DN/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5888002 |
| Деталь: | ADF UNIT (SP), MFC7360/ MFC7360N |
| Парткод: | LX5888003 |
| Деталь: | ADF UNIT (SP), MFC7362N |
| Парткод: | LX5888004 |
| Деталь: | ADF UNIT (SP), MFC7460DN/ MFC7470D |
| Парткод: | LX5888001 |
| Деталь: | HINGE ASSY L, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5255001 |
| Деталь: | HINGE ASSY L, MFC7360/ MFC7360N/ MFC7362N |
| Парткод: | LX5255003 |
| Деталь: | HINGE R, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5180001 |
| Деталь: | HINGE R, MFC7360/ MFC7360N |
| Парткод: | LX5180003 |
| Деталь: | HINGE R, MFC7362N |
| Парткод: | LX5180004 |
| Деталь: | HINGE R SUPPORT, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LS8155002 |
| Деталь: | HINGE R SUPPORT, MFC7360/ MFC7360N |
| Парткод: | LS8155003 |
| Деталь: | HINGE R SUPPORT, MFC7362N |
| Парткод: | LS8155004 |
| Деталь: | ADF EMBLEM, DCP7065DN FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LX5211001 |
| Деталь: | ADF EMBLEM, MFC7360N FOR US/ CAN/ ARG/ BRA |
| Парткод: | LX4202003 |
| Деталь: | ADF EMBLEM, MFC7460DN/ MFC7860DW FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LX4202002 |
| Деталь: | ADF EMBLEM, DCP7065DN EXCEPT FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LX4197002 |
| Деталь: | ADF EMBLEM, MFC7360/ MFC7360N EXCEPT FOR US/ CAN/ ARG |
| Парткод: | LX4196003 |
| Деталь: | ADF EMBLEM, MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW EXCEPT FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LX4196002 |
| Деталь: | ADF EMBLEM, MFC7362N |
| Парткод: | LX4196004 |
| Деталь: | DOCUMENT COVER ASSY (SP), DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LX5938003 |
| Деталь: | DOCUMENT COVER ASSY (SP), DCP7060D |
| Парткод: | LX5938001 |
| Деталь: | DOCUMENT COVER ASSY (SP), DCP7070DW |
| Парткод: | LEA215001 |
| Деталь: | DOCUMENT COVER ASSY (SP), HL2280DW |
| Парткод: | LX5939001 |
| Деталь: | HINGE L, DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LX5089003 |
| Деталь: | HINGE L, DCP7060D/ DCP7070DW/ HL2280DW |
| Парткод: | LX5089001 |
| Деталь: | HINGE R, DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LX5182003 |
| Деталь: | HINGE R, DCP7060D/ DCP7070DW/ HL2280DW |
| Парткод: | LX5182001 |
| Деталь: | HINGE L SUPPORT, DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LS1690003 |
| Деталь: | HINGE L SUPPORT, DCP7060D/ DCP7070DW/ HL2280DW |
| Парткод: | LS1690002 |
| Деталь: | FB EMBLEM, DCP7055 FOR ARG/ CHL/ BRA/ MEX |
| Парткод: | LX5259003 |
| Деталь: | FB EMBLEM, DCP7055 EXCEPT FOR ARG/ CHL/ BRA/ MEX, DCP7057/ DCP7057E |
| Парткод: | LX5135003 |
| Деталь: | FB EMBLEM, DCP7060D FOR US/ CAN |
| Парткод: | LX5259001 |
| Деталь: | FB EMBLEM, DCP7060D EXCEPT FOR US/ CAN |
| Парткод: | LX5135001 |
| Деталь: | DOCUMENT COVER ASSY, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5039001 |
| Деталь: | DOCUMENT COVER ASSY, MFC7360/ MFC7360N |
| Парткод: | LX5039003 |
| Деталь: | DOCUMENT COVER ASSY, MFC7362N |
| Парткод: | LX5039004 |
| Деталь: | ADF MOTOR, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5307001 |
| Деталь: | DOCUMENT SCANNING POSITION DETECTION SENSOR PCB ASSY, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LG6753001 |
| Деталь: | DOCUMENT DETECTION / ADF COVER OPEN SENSOR PCB ASSY, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LT1120001 |
| Деталь: | DOCUMENT FEED ROLLER ASSY, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5479001 |
| Цена: | 1 300 ₽ |
| Деталь: | SEPARATION RUBBER HOLDER ASSY, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5962001 |
| Цена: | 1 400 ₽ |
| Деталь: | SEPARATION ROLLER ASSY, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5256001 |
| Цена: | 1 700 ₽ |
| Деталь: | GEAR COVER, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5041001 |
| Деталь: | GEAR COVER, MFC7360/ MFC7360N |
| Парткод: | LX5041003 |
| Деталь: | GEAR COVER, MFC7362N |
| Парткод: | LX5041004 |
| Деталь: | ADF COVER ASSY, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5042001 |
| Деталь: | ADF COVER ASSY, MFC7360/ MFC7360N |
| Парткод: | LX5042003 |
| Деталь: | ADF COVER ASSY, MFC7362N |
| Парткод: | LX5042004 |
| Деталь: | HINGE ARM, DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LX5183003 |
| Деталь: | HINGE ARM, DCP7060D/ DCP7070DW/ HL2280DW |
| Парткод: | LX5183001 |
| Деталь: | DOCUMENT SUB TRAY, DCP7065DN/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5371005 |
| Деталь: | DOCUMENT SUB TRAY, MFC7360/ MFC7360N |
| Парткод: | LX5371003 |
| Деталь: | DOCUMENT SUB TRAY, MFC7362N |
| Парткод: | LX5371004 |
| Деталь: | DOCUMENT SUB TRAY, MFC7460DN/ MFC7470D |
| Парткод: | LX5371002 |
| Деталь: | LF2 SPRING SHAFT, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX4127001 |
| Деталь: | LF2 PINCH ROLLER, DCP7065DN/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LS4567002 |
| Деталь: | DOCUMENT STOPPER, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX4184002 |
| Цена: | 440 ₽ |
| Деталь: | DOCUMENT STOPPER, MFC7360/ MFC7360N |
| Парткод: | LX4184003 |
| Деталь: | DOCUMENT STOPPER, MFC7362N |
| Парткод: | LX4184004 |
| Деталь: | HINGE ARM R, DCP7065DN/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LS8141002 |
| Деталь: | HINGE ARM R, MFC7360/ MFC7360N |
| Парткод: | LS8141003 |
| Деталь: | HINGE ARM R, MFC7362N |
| Парткод: | LS8141004 |
| Деталь: | PAPER FEEDING KIT (SP) |
| Парткод: | LY3058001 |
| Деталь: | LCD SHEET PRINTED, HL2280DW |
| Парткод: | LX5292001 |
| Деталь: | LCD SHEET PRINTED, DCP7070DW FOR RUS |
| Парткод: | LEA182001 |
| Деталь: | LCD SHEET PRINTED, DCP7055 FOR RUS |
| Парткод: | LEA077001 |
| Деталь: | LCD SHEET PRINTED, DCP7057 FOR RUS |
| Парткод: | LEA084001 |
| Деталь: | LCD SHEET PRINTED, DCP7060D FOR RUS |
| Парткод: | LEA096001 |
| Деталь: | LCD SHEET PRINTED, DCP7065DN FOR RUS |
| Парткод: | LEA116001 |
| Деталь: | LCD SHEET PRINTED, DCP7055 EXCEPT FOR RUS |
| Парткод: | LX5143001 |
| Деталь: | LCD SHEET PRINTED, DCP7057/ DCP7057E EXCEPT FOR RUS |
| Парткод: | LX5826001 |
| Деталь: | LCD SHEET PRINTED, DCP7060D EXCEPT FOR RUS |
| Парткод: | LX5197001 |
| Деталь: | LCD SHEET PRINTED, DCP7065DN EXCEPT FOR RUS |
| Парткод: | LX5150001 |
| Деталь: | LCD SHEET PRINTED, DCP7070DW EXCEPT FOR RUS |
| Парткод: | LX5293001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR US/ CAN/ UK/ FRA/ BEL/ NLD/ PHL/ ASA/ GUL/ IND/ ARL/ NZ/ PND/ CEE (ENGLISH) |
| Парткод: | LX5611001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW/ HL2280DW FOR US/ CAN/ UK/ FRA/ BEL/ NLD/ PND/ CEE (ENGLISH) |
| Парткод: | LEA122001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR GER/ CHE (GERMAN) |
| Парткод: | LX5806001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR GER/ CHE (GERMAN) |
| Парткод: | LX5817001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW FOR GER |
| Парткод: | LX5599005 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR UK/ FRA/ BEL/ NLD/ ASA/ GUL/ IND/ ARL/ NZ/ PND/ CEE, DCP7057E (ENGLISH) |
| Парткод: | LX5602001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR CHE/ FRA/ BEL/ NLD (FRENCH) |
| Парткод: | LX5603001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW FOR FRA/ BEL/ NLD (FRENCH) |
| Парткод: | LEA123001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR CHE/ FRA/ BEL/ NLD (FRENCH) |
| Парткод: | LX5612001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR FRA/ BEL/ NLD (DUTCH) |
| Парткод: | LX5614001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR FRA/ BEL/ NLD (DUTCH) |
| Парткод: | LX5605001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW FOR FRA/ BEL/ NLD (DUTCH) |
| Парткод: | LEA124001 |
| Деталь: | PRINTED PANEL COVER, DCP7055/ DCP7057 FOR ITA |
| Парткод: | LX5576003 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR ITA/ SPA/ POR (ITALIAN) |
| Парткод: | LX5566001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR CHN |
| Парткод: | LX5264003 |
| Деталь: | PRINTED PANEL COVER, DCP7060D FOR CHN |
| Парткод: | LX5264001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D FOR TWN |
| Парткод: | LEA212001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR ARG/ CHL/ MEX |
| Парткод: | LX5587003 |
| Деталь: | PRINTED PANEL COVER, DCP7065DN FOR ARG/ CHL |
| Парткод: | LX5569001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR GUL (TURKISH) |
| Парткод: | LEA067001 |
| Деталь: | PRINTED PANEL COVER, DCP7065DN FOR GUL (TURKISH) |
| Парткод: | LEA109001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR GUL (ARABIC) |
| Парткод: | LEA069001 |
| Деталь: | PRINTED PANEL COVER, DCP7065DN FOR GUL (ARABIC) |
| Парткод: | LEA111001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR BRA |
| Парткод: | LX5926003 |
| Деталь: | PRINTED PANEL COVER, DCP7065DN FOR BRA |
| Парткод: | LEA113001 |
| Деталь: | PRINTED PANEL COVER, DCP7055/ DCP7057 FOR RUS |
| Парткод: | LEA076003 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR RUS |
| Парткод: | LEA097001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW FOR RUS |
| Парткод: | LEA097005 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR IBR |
| Парткод: | LX5855001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D FOR IBR, DCP7065DN FOR ITA/ SPA/ POR |
| Парткод: | LX5857001 |
| Деталь: | PRINTED PANEL COVER, DCP7055 FOR CEE (POLISH) |
| Парткод: | LEA080001 |
| Деталь: | PRINTED PANEL COVER, DCP7060D/ DCP7065DN FOR CEE (POLISH) |
| Парткод: | LEA106001 |
| Деталь: | PRINTED PANEL COVER, DCP7070DW FOR CEE (POLISH) |
| Парткод: | LEA220001 |
| Деталь: | ADDRESS LABEL, MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D |
| Парткод: | LX5067001 |
| Деталь: | TAPTITE CUP B M3X10 |
| Парткод: | 87311016 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360N FOR POL |
| Парткод: | LX5978003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7460DN/ MFC7860DW FOR POL |
| Парткод: | LEA006001 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360N FOR BRA |
| Парткод: | LEA149003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7460DN/ MFC7860DW FOR BRA |
| Парткод: | LEA154001 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360 FOR KOR |
| Парткод: | LEA129003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7860DN FOR KOR |
| Парткод: | LX5286001 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360N FOR RUS |
| Парткод: | LX5983003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7860DW FOR RUS |
| Парткод: | LEA165001 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360N FOR PND |
| Парткод: | LX5723003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7460DN/ MFC7860DW FOR PND |
| Парткод: | LX5712001 |
| Деталь: | PANEL COVER SUB ASSY, MFC7360N FOR IBR |
| Парткод: | LX5483003 |
| Деталь: | PANEL COVER SUB ASSY, MFC7460DN/ MFC7860DW FOR IBR |
| Парткод: | LX5490001 |
| Деталь: | RUBBER KEY L, DCP7055 |
| Парткод: | LX5139003 |
| Деталь: | RUBBER KEY L, DCP7057/ DCP7057E |
| Парткод: | LX5139002 |
| Деталь: | RUBBER KEY L, DCP7060D/ DCP7065DN |
| Парткод: | LX5139001 |
| Деталь: | RUBBER KEY L, DCP7070DW/ HL2280DW |
| Парткод: | LX5139005 |
| Деталь: | RUBBER KEY L, MFC7360/ MFC7360N |
| Парткод: | LX5102003 |
| Деталь: | RUBBER KEY L, MFC7362N |
| Парткод: | LX5102001 |
| Деталь: | RUBBER KEY L, MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5071001 |
| Деталь: | RUBBER KEY R, DCP7055 |
| Парткод: | LX5141003 |
| Деталь: | RUBBER KEY R, DCP7057/ DCP7057E |
| Парткод: | LX5141002 |
| Деталь: | RUBBER KEY R, DCP7060D/ DCP7065DN |
| Парткод: | LX5141001 |
| Деталь: | RUBBER KEY R, DCP7070DW/ HL2280DW |
| Парткод: | LX5141005 |
| Деталь: | RUBBER KEY R, MFC7360/ MFC7360N |
| Парткод: | LX5073003 |
| Деталь: | RUBBER KEY R, MFC7362N |
| Парткод: | LX5073004 |
| Деталь: | RUBBER KEY R, MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5073001 |
| Деталь: | PANEL PCB ASSY, DCP7065DN/ DCP7070DW/ HL2280DW |
| Парткод: | LT1196001 |
| Деталь: | PANEL PCB ASSY, MFC7860DN/ MFC7860DW |
| Парткод: | LT1136001 |
| Деталь: | PANEL PCB ASSY, DCP7055/ DCP7060D FOR CHN |
| Парткод: | LT1396001 |
| Деталь: | PANEL PCB ASSY, MFC7360/ MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LT1395001 |
| Деталь: | PANEL PCB ASSY, DCP7055/ DCP7057/ DCP7057E/ DCP7060D EXCEPT FOR CHN |
| Парткод: | LT1196002 |
| Деталь: | PANEL PCB ASSY, MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN EXCEPT FOR CHN |
| Парткод: | LT1136002 |
| Деталь: | LCD, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7860DN/ MFC7860DW EXCEPT FOR CHN |
| Парткод: | LT0533001 |
| Деталь: | LCD, DCP7055/ DCP7060D/ MFC7360/ MFC7470DN/ MFC7860DN FOR CHN |
| Парткод: | LT0502001 |
| Деталь: | LCD, DCP7055/ DCP7057/ DCP7057E/ DCP7060D/ MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN EXCEPT FOR CHN |
| Парткод: | LT0149001 |
| Деталь: | BACK LIGHT GUIDE FOR CHN |
| Парткод: | LX5262001 |
| Деталь: | BACK LIGHT GUIDE EXCEPT FOR CHN |
| Парткод: | LX5161001 |
| Деталь: | DIFFUSION FILM, DCP7055/ DCP7060D/ MFC7360/ MFC7470D FOR CHN, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7860DN/ MFC7860DW FOR ALL COUNTRIES |
| Парткод: | LS7210001 |
| Деталь: | LCD SHEET PRINTED, MFC7360 |
| Парткод: | LX5103001 |
| Деталь: | LCD SHEET PRINTED, MFC7360N FOR RUS |
| Парткод: | LX5985001 |
| Деталь: | LCD SHEET PRINTED, MFC7360N EXCEPT FOR RUS |
| Парткод: | LX5279001 |
| Деталь: | LCD SHEET PRINTED, MFC7362N |
| Парткод: | LX5865001 |
| Деталь: | LCD SHEET PRINTED, MFC7460DN |
| Парткод: | LX5065001 |
| Деталь: | LCD SHEET PRINTED, MFC7470D |
| Парткод: | LX5276001 |
| Деталь: | LCD SHEET PRINTED, MFC7860DN |
| Парткод: | LX5284001 |
| Деталь: | LCD SHEET PRINTED, MFC7860DW FOR RUS |
| Парткод: | LEA167001 |
| Деталь: | LCD SHEET PRINTED, MFC7860DW EXCEPT FOR RUS |
| Парткод: | LX5187001 |
| Деталь: | RUBBER FOOT |
| Парткод: | LJ7403001 |
| Деталь: | FUSER FAN |
| Парткод: | LY2136001 |
| Цена: | 1 300 ₽ |
| Деталь: | FILTER |
| Парткод: | LY2141001 |
| Цена: | 350 ₽ |
| Деталь: | NEW TONER SENSOR PCB ASSY, DCP7055/ DCP7057/ DCP7057E/ DCP7060D/ MFC7360/ MFC7360N/ MFC7362N |
| Парткод: | LT1475001 |
| Деталь: | NEW TONER SENSOR PCB ASSY, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LT1268001 |
| Деталь: | FEEDER GEAR 17 |
| Парткод: | LY2584001 |
| Цена: | 30 ₽ |
| Деталь: | T1 CLUTCH ASSY |
| Парткод: | LY2144001 |
| Цена: | 700 ₽ |
| Деталь: | REG CLUTCH ASSY |
| Парткод: | LY2150001 |
| Цена: | 700 ₽ |
| Деталь: | WIRELESS LAN PCB ASSY, DCP7070DW/ HL2280DW/ MFC7860DW |
| Парткод: | LT1401001 |
| Деталь: | LASER UNIT (SP), DCP7055/ DCP7057/ DCP7057E |
| Парткод: | LY2566001 |
| Деталь: | LASER UNIT (SP), DCP7060D/ DCP7065DN/ DCP7070DW/ HL2280DW/ |
| Парткод: | LX5198001 |
| Деталь: | MFC7360/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW LABEL LASER CAUTION 75X100 |
| Парткод: | LU1259001 |
| Деталь: | TAPTITE CUP S M3X8 SR |
| Парткод: | LP2378001 |
| Деталь: | JOINT COVER ASSY, DCP7055 |
| Парткод: | LX5081003 |
| Деталь: | JOINT COVER ASSY, DCP7057/ DCP7057E |
| Парткод: | LX5081004 |
| Деталь: | JOINT COVER ASSY, DCP7060D |
| Парткод: | LX5081001 |
| Деталь: | JOINT COVER ASSY, DCP7065DN/ DCP7070DW/ HL2280DW |
| Парткод: | LX5081002 |
| Деталь: | JOINT COVER ASSY, MFC7360 FOR CHN |
| Парткод: | LX5368003 |
| Деталь: | JOINT COVER ASSY, MFC7360/ MFC7360N EXCEPT FOR CHN |
| Парткод: | LX5043003 |
| Деталь: | JOINT COVER ASSY, MFC7362N |
| Парткод: | LX5043004 |
| Деталь: | JOINT COVER ASSY, MFC7460DN |
| Парткод: | LX5043001 |
| Деталь: | JOINT COVER ASSY, MFC7470D |
| Парткод: | LX5368001 |
| Деталь: | JOINT COVER ASSY, MFC7860DN FOR CHN |
| Парткод: | LX5368002 |
| Деталь: | JOINT COVER ASSY, MFC7860DN/ MFC7860DW EXCEPT FOR CHN |
| Парткод: | LX5043002 |
| Деталь: | FRONT COVER ASSY, DCP7057/ DCP7057E EXCEPT FOR RUS |
| Парткод: | LX5824001 |
| Деталь: | FRONT COVER ASSY, DCP7060D/ MFC7460DN EXCEPT FOR CHN/ ASA/ RUS |
| Парткод: | LX5050001 |
| Деталь: | FRONT COVER ASSY, DCP7065DN EXCEPT FOR PHL/ GUL/ IND/ RUS |
| Парткод: | LX5050002 |
| Деталь: | FRONT COVER ASSY, MFC7360 FOR TWN, MFC7360N EXCEPT FOR RUS |
| Парткод: | LX5050003 |
| Деталь: | FRONT COVER ASSY, MFC7362N |
| Парткод: | LX5050004 |
| Деталь: | FRONT COVER ASSY, DCP7055 FOR CHN |
| Парткод: | LX5828001 |
| Деталь: | FRONT COVER ASSY, DCP7060D/ MFC7470D FOR CHN |
| Парткод: | LX5830001 |
| Деталь: | FRONT COVER ASSY, MFC7360 FOR CHN |
| Парткод: | LX5830003 |
| Деталь: | FRONT COVER ASSY, MFC7860DN FOR CHN |
| Парткод: | LX5832001 |
| Деталь: | FRONT COVER ASSY, DCP7065DN FOR PHL/ GUL/ IND |
| Парткод: | LX5904002 |
| Деталь: | FRONT COVER ASSY, DCP7055 FOR ASA/ GUL/ IND |
| Парткод: | LX5955001 |
| Деталь: | FRONT COVER ASSY, DCP7060D FOR ASA |
| Парткод: | LX5904001 |
| Деталь: | FRONT COVER ASSY, MFC7360 FOR ASA/ GUL/ KOR/ IND |
| Парткод: | LX5904003 |
| Деталь: | FRONT COVER ASSY, MFC7860DN FOR KOR, MFC7860DW FOR PHL/ ASA/ GUL |
| Парткод: | LEA029001 |
| Деталь: | FRONT COVER ASSY, DCP7055 FOR RUS |
| Парткод: | LX5906001 |
| Деталь: | FRONT COVER ASSY, DCP7057 FOR RUS |
| Парткод: | LX5908001 |
| Деталь: | FRONT COVER ASSY, DCP7060D FOR RUS |
| Парткод: | LX5910001 |
| Деталь: | FRONT COVER ASSY, DCP7065DN FOR RUS |
| Парткод: | LX5910002 |
| Деталь: | FRONT COVER ASSY, MFC7360N FOR RUS |
| Парткод: | LX5910003 |
| Деталь: | FRONT COVER ASSY, DCP7070DW/ MFC7860DW FOR RUS |
| Парткод: | LX5912001 |
| Деталь: | FRONT COVER ASSY, DCP7070DW/ HL2280DW/ MFC7860DW EXCEPT FOR PHL/ ASA/ GUL/ RUS |
| Парткод: | LX5078001 |
| Деталь: | FRONT COVER ASSY, DCP7055 EXCEPT FOR CHN/ ASA/ RUS |
| Парткод: | LX5083001 |
| Деталь: | SUPPORT FLAP 1, DCP7055 |
| Парткод: | LX5055003 |
| Деталь: | SUPPORT FLAP 1, DCP7057/ DCP7057E/ DCP7060D/ MFC7460DN/ MFC7470D |
| Парткод: | LX5055001 |
| Деталь: | SUPPORT FLAP 1, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7362N/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5055002 |
| Цена: | 650 ₽ |
| Деталь: | SUPPORT FLAP 1, MFC7360/ MFC7360N |
| Парткод: | LX5055004 |
| Деталь: | INNER CHUTE ASSY, DCP7055 |
| Парткод: | LY2275003 |
| Деталь: | INNER CHUTE ASSY, DCP7057/ DCP7057E/ DCP7060D/ MFC7460DN/ MFC7470D |
| Парткод: | LY2275001 |
| Деталь: | INNER CHUTE ASSY, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7360/ MFC7360N/ MFC7362N/ |
| Парткод: | LY2275002 |
| Деталь: | FUSER COVER |
| Парткод: | LY2317001 |
| Деталь: | OUTER CHUTE ASSY |
| Парткод: | LY2285001 |
| Деталь: | BACK COVER, DCP7055/ DCP7057/ DCP7057E/ MFC7360/ MFC7360N |
| Парткод: | LX5318003 |
| Деталь: | BACK COVER, DCP7060D/ DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5163001 |
| Деталь: | BACK COVER, MFC7362N |
| Парткод: | LX5318004 |
| Деталь: | SIDE COVER L, DCP7055/ DCP7057/ DCP7057E/ MFC7360N FOR ALL COUNTRIES, MFC7360 EXCEPT FOR CHN |
| Парткод: | LX5058003 |
| Деталь: | SIDE COVER L, |
| Парткод: | LX5058001 |
| Деталь: | MFC7460DN/ MFC7860DN EXCEPT FOR CHN SIDE COVER L, MFC7362N |
| Парткод: | LX5058004 |
| Деталь: | SIDE COVER L ASSY, MFC7360 FOR CHN |
| Парткод: | LX5294003 |
| Деталь: | SIDE COVER L ASSY, MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LX5294001 |
| Деталь: | SIDE COVER R, DCP7055/ DCP7057/ DCP7057E/ MFC7360/ MFC7360N |
| Парткод: | LX5059003 |
| Деталь: | SIDE COVER R, DCP7060D/ DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LX5059001 |
| Деталь: | SIDE COVER R, MFC7362N |
| Парткод: | LX5059004 |
| Деталь: | PULL ARM L |
| Парткод: | LF6145001 |
| Деталь: | PULL ARM R |
| Парткод: | LF6146001 |
| Деталь: | PULL ARM GUIDE |
| Парткод: | LS0340001 |
| Деталь: | LOCK CLAW |
| Парткод: | LF6148001 |
| Деталь: | PULL ARM SPRING |
| Парткод: | LX4020001 |
| Деталь: | LAN PORT CAP, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7360N/ MFC7362N/ MFC7460DN/ MFC7860DN/ MFC7860DW |
| Парткод: | LY0872001 |
| Деталь: | EXT CAP, MFC7360 MFC7360N/ MFC7362N/ MFC7460DN/ MFC7470D |
| Парткод: | LE8842001 |
| Деталь: | MFC7860DW FOR US/ CAN/ CHE/ PHL/ TWN/ CHL/ POL/ ASA/ GUL/ BRA/ RUS/ ARL/ NZ/ PND/ IBR MJ COVER EXT, |
| Парткод: | UF5745000 |
| Деталь: | SPEAKER UNIT, |
| Парткод: | LT1535001 |
| Деталь: | CORD HOOK, MFC7360/ MFC7360N/ MFC7362N |
| Парткод: | LF6745001 |
| Деталь: | CORD HOOK, MFC7460DN/ MFC7470D/ MFC7860DN/ MFC7860DW |
| Парткод: | LF6745002 |
| Деталь: | PROCESS UNIT OP LABEL |
| Парткод: | LX5098001 |
| Деталь: | LABEL H CAUTION REAR 13x95 |
| Парткод: | LY2439001 |
| Деталь: | JAM REMOVE LABEL FOR CHN |
| Парткод: | LX5958001 |
| Деталь: | JAM REMOVE LABEL EXCEPT FOR CHN |
| Парткод: | LX5260001 |
| Деталь: | TAPTITE BIND B M4X12 |
| Парткод: | LU5693001 |
| Деталь: | DR/ TN MODEL LABEL FOR |
| Парткод: | LX5412001 |
| Деталь: | DR/ TN MODEL LABEL FOR DCP7055 FOR ARG/ CHL/ BRA/ MEX |
| Парткод: | LX5957001 |
| Деталь: | PAPER STACK LEVER |
| Парткод: | LY3026001 |
| Деталь: | SUPPORT FLAP 2, DCP7055 |
| Парткод: | LY2266003 |
| Деталь: | SUPPORT FLAP 2, DCP7057/ DCP7057E/ DCP7060D/ MFC7460DN/ MFC7470D |
| Парткод: | LY2266001 |
| Деталь: | SUPPORT FLAP 2, DCP7065DN/ DCP7070DW/ HL2280DW/ MFC7362N/ MFC7860DN/ MFC7860DW |
| Парткод: | LY2266002 |
| Деталь: | SUPPORT FLAP 2, MFC7360/ MFC7360N |
| Парткод: | LY2266004 |
| Деталь: | EJECT PICH ROLLER R ASSY |
| Парткод: | LU2234001 |
| Деталь: | EJECT PICH ROLLER L ASSY |
| Парткод: | LU2237001 |
| Деталь: | SIDE COVER L, MFC7360 FOR CHN |
| Парткод: | LX5295003 |
| Деталь: | SIDE COVER L, MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LX5295001 |
| Деталь: | LOWER HANDSET COVER, MFC7360 FOR CHN |
| Парткод: | LX5296003 |
| Деталь: | LOWER HANDSET COVER, MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LX5296001 |
| Деталь: | UPPER HANDSET COVER, MFC7360 FOR CHN |
| Парткод: | LX5297003 |
| Деталь: | UPPER HANDSET COVER, MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LX5297001 |
| Деталь: | HOOK SWITCH PCB ASSY, MFC7360/ MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LT1764001 |
| Деталь: | ACTUATOR HOOK PL, MFC7360/ MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LS0018008 |
| Деталь: | MAIN PCB ASSY, DCP7060D (*) |
| Парткод: | LT1143051 |
| Деталь: | MAIN PCB ASSY, DCP7065DN |
| Парткод: | LT1144001 |
| Деталь: | MAIN PCB ASSY, DCP7070DW/ HL2280DW |
| Парткод: | LT1354001 |
| Цена: | 7 100 ₽ |
| Деталь: | MAIN PCB ASSY, MFC7360N FOR US (*) |
| Парткод: | LT1386051 |
| Деталь: | MAIN PCB ASSY, MFC7460DN FOR US (*) |
| Парткод: | LT1123051 |
| Деталь: | MAIN PCB ASSY, MFC7360N FOR US/ CAN |
| Парткод: | LT1386001 |
| Деталь: | MAIN PCB ASSY, MFC7460DN FOR US/ CAN |
| Парткод: | LT1123001 |
| Деталь: | MAIN PCB ASSY, MFC7860DW FOR US/ CAN |
| Парткод: | LT1146001 |
| Деталь: | MAIN PCB ASSY, DCP7055 FOR CHN |
| Парткод: | LT1142020 |
| Деталь: | MAIN PCB ASSY, DCP7060D FOR CHN |
| Парткод: | LT1143020 |
| Деталь: | MAIN PCB ASSY, MFC7360 FOR CHN |
| Парткод: | LT1145020 |
| Деталь: | MAIN PCB ASSY, MFC7470D FOR CHN |
| Парткод: | LT1397020 |
| Деталь: | MAIN PCB ASSY, MFC7860DN FOR CHN |
| Парткод: | LT1398020 |
| Деталь: | MAIN PCB ASSY, MFC7360 FOR TWN |
| Парткод: | LT1145023 |
| Деталь: | MAIN PCB ASSY, MFC7460DN FOR TWN |
| Парткод: | LT1123023 |
| Деталь: | MAIN PCB ASSY, MFC7860DW FOR TWN |
| Парткод: | LT1146023 |
| Деталь: | MAIN PCB ASSY, MFC7360 FOR ASA/ GUL/ KOR/ IND |
| Парткод: | LT1145040 |
| Деталь: | MAIN PCB ASSY, MFC7460DN FOR ARG/ CHL/ BRA/ PND/ CEE |
| Парткод: | LT1123005 |
| Деталь: | MAIN PCB ASSY, MFC7860DN FOR KOR |
| Парткод: | LT1398040 |
| Деталь: | MAIN PCB ASSY, MFC7360N/ MFC7362N EXCEPT FOR US/ CAN |
| Парткод: | LT1386004 |
| Деталь: | MAIN PCB ASSY, MFC7360N EXCEPT FOR US (*) |
| Парткод: | LT1386054 |
| Деталь: | MAIN PCB ASSY, MFC7460DN EXCEPT FOR US/ CAN/ ARG/ CHL/ PND/ CEE |
| Парткод: | LT1123004 |
| Деталь: | MAIN PCB ASSY, MFC7460DN EXCEPT FOR US (*) |
| Парткод: | LT1123054 |
| Деталь: | MAIN PCB ASSY, MFC7860DW EXCEPT FOR US/ CAN/ TWN |
| Парткод: | LT1146040 |
| Деталь: | MAIN PCB ASSY, DCP7055 EXCEPT FOR CHN, DCP7057/ DCP7057E |
| Парткод: | LT1142001 |
| Деталь: | MAIN PCB ASSY, DCP7060D EXCEPT FOR CHN |
| Парткод: | LT1143001 |
| Деталь: | NCU ASSY, MFC7860DW FOR GUL |
| Парткод: | LT1326001 |
| Деталь: | NCU ASSY, MFC7860DN FOR KOR, MFC7860DW FOR PHL/ CHL/ ASA/ BRA |
| Парткод: | LT1328001 |
| Деталь: | NCU ASSY, MFC7360N/ MFC7362N/ MFC7460DN FOR ARL/ NZ |
| Парткод: | LT1169002 |
| Деталь: | NCU ASSY, MFC7860DW FOR ARL/ NZ |
| Парткод: | LT1169001 |
| Деталь: | NCU ASSY, MFC7360N/ MFC7460DN FOR US |
| Парткод: | LT0866001 |
| Деталь: | NCU ASSY, MFC7360N/ MFC7460DN FOR CAN |
| Парткод: | LT0866003 |
| Деталь: | NCU ASSY, MFC7360/ MFC7360N/ MFC7460DN FOR ARG/ CHL/ ASA/ BRA/ KOR/ IND |
| Парткод: | LT1328002 |
| Деталь: | NCU ASSY, MFC7860DW FOR US |
| Парткод: | LT0867001 |
| Деталь: | NCU ASSY, MFC7860DW FOR CAN |
| Парткод: | LT0867003 |
| Деталь: | NCU ASSY, MFC7360N/ MFC7460DN FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ ITA/ POL/ RUS/ IBR/ PND/ CEE |
| Парткод: | LT1168012 |
| Деталь: | NCU ASSY, MFC7860DW FOR GER/ UK/ FRA/ BEL/ CHE/ NLD/ POL/ RUS/ PND/ ITA/ IBR |
| Парткод: | LT1168002 |
| Деталь: | NCU ASSY, MFC7360 FOR CHN |
| Парткод: | LT1325002 |
| Деталь: | NCU ASSY, MFC7470D/ MFC7860DN FOR CHN |
| Парткод: | LT1325001 |
| Деталь: | NCU ASSY, MFC7360/ MFC7460DN/ MFC7860DW FOR TWN |
| Парткод: | LT1839001 |
| Деталь: | NCU ASSY, MFC7360 FOR GUL |
| Парткод: | LT1326002 |
| Деталь: | LOW VOLTAGE POWER SUPPLY PCB ASSY 115V FOR US/ CAN/ TWN/ BRA/ MEX |
| Парткод: | LT1275001 |
| Деталь: | LOW VOLTAGE POWER SUPPLY PCB ASSY 230V |
| Парткод: | LT1269001 |
| Деталь: | LOW VOLTAGE POWER SUPPLY PCB ASSY 230V FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ ITA/ SPA/ POR/ POL/ ARL/ NZ/ PND/ IBR/ CEE |
| Парткод: | LT1812001 |
| Деталь: | LOW VOLTAGE POWER SUPPLY PCB ASSY 230V FOR CHN/ IND/ RUS |
| Парткод: | LT1281001 |
| Цена: | 4 300 ₽ |
| Деталь: | HIGH VOLTAGE POWER SUPPLY PCB ASSY |
| Парткод: | LV0564001 |
Коды ошибок
0F
1E
24
36
3B
44
50
56
57
58
59
63
67
6A
6B
6C
6D
6F
71
72
74
75
76
78
7A
7B
7C
7D
7E
7F
80
83
84
88
89
8A
8D
9A
9B
9C
A1
A2
A3
A4
A5
A6
A7
A8
AD
AF
B0
B1
B2
B3
B4
B7
B8
B9
BB
BD
C0
C7
C8
D1
DD
DE
E0
E2
E6
EC
ED
EE
EF
F0
F9
Описание
| Error code: | 0F |
| Display: | Paper Jam |
| Description: | Sorter full or empty |
| Causes: | 1 Harness connection failure of back cover sensor. 2 Back cover damaged. 3 Back cover sensor failure. 4 Main PCB failure. |
| Error code: | 1E |
| Description: | Drum Cartridge Fuse Error - The machine could not blow the fuse. |
| Remedy: | 1. Verify the drum cartridge is set correctly. 2. Check the point of contacts between drum cartridge and Connect A PCB (P86). 3. Check the contact between Connect A PCB (P80C) and the main board. 4. Replace the drum cartridge. 5. Replace the Connect A PCB. 6. Replace the main control PCB. |
| Error code: | 24 |
| Description: | A label format was sent to the printer but was not recognized. The DATA light does not flash. |
| Causes: | The communication parameters are incorrect. |
| Remedy: | Check the printer driver or software communications settings (if applicable). If you are using serial communication, check the serial port setting in the control panel menu. See Set Serial Communications on page 91. If you are using serial communication, make sure you are using a null modem cable or a null modem adapter. Using the control panel controls, check the protocol setting. It should be set to NONE. See Set Protocol on page 93. If a driver is used, check the driver communication settings for your connection. |
| Error code: | 36 |
| Description: | The printer locks up while running the Power-On Self Test. |
| Causes: | Main logic board failure. |
| Remedy: | Replace the main logic board. |
| Error code: | 3B |
| Display: | Unable to print 3B |
| Description: | Main PCB RAM failure |
| Causes: | Main PCB failure |
| Remedy: | Replace the main PCB ASSY. |
| Error code: | 44 |
| Display: | Send Error (DNS) |
| Description: | Fuser Sub Lamp Overheat Failure, Code 44 The front thermistor has detected an overheat condition. Note If this failure reoccurs three times successively, an Engine NVRAM value is set preventing further printer use until the Clear Tech Rep Fault is performed. |
| Causes: | • Fuser • Engine Control Board |
| Remedy: | 1 1. Turn OFF power, remove the fuser assembly and allow it to cool down. 2. Measure the resistance between the Fuser connector P600-7 and P600-9. 3. Does the resistance measure between 30 K and 190 K Ohms? Go to step 2. Replace the fuser assembly. 2 1. Reinstall the fuser assembly. 2. Enter service diagnostics. 3. From the Sensor Tests run the Fuser Temperature test. 4. Is the temperature indicated approximately 165o C? Go to step 4. Go to step 3. 3 1. Turn OFF printer power. 2. Measure the resistance between J641-4 and J641-5 on the engine control board. 3. Does the resistance measure between 30 K and 190 K Ohms? Go to step 4. Repair or replace the wiring harness. 4 1. Turn printer power back ON. 2. Is there ~+3.4 VDC between J590-3 and ground? Check the AC wiring harness to the fuser. If the check is OK, replace the AC drive assembly. Replace the engine control board. |
| Error code: | 50 |
| Display: | Tray 2 Paper Empty |
| Description: | Fuser Fan Failure The Fuser Fan rotation signal indicates to the Engine Control Board that the fan is no longer operational. |
| Causes: | • Fuser Fan, PL5.3.31 • FAN/PHD/MOT Harness, PL10.1.9 • Engine Control Board, PL9.1.16 |
| Remedy: | 1 Check the Fuser Fan for damage. Remove the Front Cover. Is the fan damaged? Replace the Fuser Fan. Go to Step 2. 2 Check the Fuser Fan connection. Is P/J482 connected to the harness? Go to Step 2. Reconnect the Fan. 3 Check orientation of the Fuser Fan. Does the Fan’s label face into the chute? Go to Step 3. Correct the installation. 4 Test the Fuser Fan. Run the Service Diagnostics Fuser Fan test. Does the Fan operate. Go to Step 6. Go to Step 5. 5 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J482. 2. Check continuity between J48 <=> P483. Go to Step 5. Replace the FAN/PHD/MOT Harness. 6 Check the fan rotation signal. Print one sheet. Is there +3.3 V across P/J48-A12 <=> P/J48-A13? Replace the Engine Control Board. Replace the Fuser Fan. |
| Error code: | 56 |
| Display: | Toner Empty |
| Description: | The toner cartridge has run out. The machine stops printing. |
| Causes: | Harness connection failure of back cover switch ASSY. Eject actuator failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Replace the toner cartridge with a new one. |
| Error code: | 57 |
| Display: | Toner Low |
| Description: | The toner cartridge is almost empty. |
| Remedy: | Take out the toner cartridge and thoroughly shake it. By doing this, you can temporarily reestablish printing operations. |
| Error code: | 58 |
| Display: | Tray 1 Paper Empty |
| Description: | There is no paper in the tray 1. |
| Causes: | Harness connection failure between fuser unit and eject sensor PCB. Fuser unit failure. LVPS PCB failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Load paper in the tray 1. |
| Error code: | 59 |
| Display: | Tray 2 Paper Empty |
| Description: | There is no paper in the optional tray 2. |
| Causes: | Harness connection failure between fuser unit and eject sensor PCB. Fuser unit failure. LVPS PCB failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Load paper in the optional tray 2. |
| Error code: | 63 |
| Display: | Toner Exhausted |
| Description: | HOST_IF_NO_DRIVER:PCI |
| Causes: | Harness connection failure of new toner sensor harness ASSY. Harness connection failure of toner sensor PCB unit ASSY. New toner sensor harness ASSY failure (Toner empty). Toner sensor PCB unit ASSY failure. Main PCB failure. |
| Remedy: | You can select either stop or continue. It you do not select any, the printer will as stop is selected. If you select stop, you cannot print untill the genuine cartridge is installed. If you select continue, you can keep printing but the guality cannot be guaranteed, and the product svpport is no longer provided. If you wunt to change the selection, turn the printer off and on to gave this message apper again, and then re-select stop or continue. |
| Error code: | 67 |
| Display: | TOP BIN FULL |
| Description: | Orange light on The top bin is full of papers. Remove papers from the top bin. |
| Causes: | Toner sensor PCB ASSY failure. Main PCB failure |
| Remedy: | 1) Check the harness connected between the Engine controller and the exit board. (If the harness is out, insert it to the connector.) 2) In the Engine diagnostic mode, operate the full_R sensor to check if the sensor is operating. (If it is not operating, replace the exit board.) 3) Check the damage or warping of the sensor actuator. (If it is damaged or warped, replace the top bin full sensor.) 4) Replace the Engine controller. |
| Error code: | 6A |
| Description: | Fuser unit failure (The side thermistor does not detect 60°C within the specified time.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6B |
| Description: | Fuser unit failure (The center thermistor does not detect 100°C within the specified time.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6C |
| Display: | Unable to Print 6C |
| Description: | Fuser unit failure (The center thermistor detects higher temperature than the specified value.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6D |
| Description: | Fuser unit failure (The center thermistor detects lower temperature than the specified value.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6F |
| Display: | Unable to Print 6F |
| Description: | Fuser unit failure (The center and side thermistors detect extremely high temperature.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 71 |
| Display: | Paper Jam 0 |
| Description: | Paper Jam 0 |
| Causes: | The front part of paper is jammed between pickup unit and Feed sensor. |
| Error code: | 72 |
| Display: | Paper Jam 1 |
| Description: | Engine Firmware Failure The Engine Control Board detected a firmware error. |
| Causes: | • Engine Control Board, Pl9.1.16 • EEPROM Board, PL9.1.12 |
| Remedy: | 1 Cycle printer power. Does the error persist? Go to Step 2. Complete 2 Is P/J144 on the EEPROM Board properly seated and defect free? Go to Step 3. Reseat P/J144 or replace the EEPROM Board. 3 Turn printer power off and then back on. Does the error persist? Replace the Engine Control Board. Complete |
| Error code: | 74 |
| Display: | [TRAY x] [PAPER SIZE] EMPTY |
| Description: | F/W Overrun detect |
| Causes: | · Loose cable connection · Defective cleaner clutch · Defective IOD2 board · Defective IOD1 board · Defective MCTL board |
| Remedy: | 1) Check the harness connected between the Engine controller and the TA board. (If the harness is out, insert it to the connector.) 2) Check the harness connected between the TA board and the Pickup unit. (If the harness is out, insert it to the connector.) 3) Check the harness connected between the Pickup unit and the cassette sensing board. (If the harness is out, insert it to the connector.) 4) Check the pickup unit. (If it is inferior part or warped part, replace it.) 5) Check the damage of the cassette sensing B . (If it is damaged, replace the cassette sensing board.) 6) In the Engine diagnostic mode, operate the running count of the paper if it is under 39. (If it is over 39, replace the Pickup unit.) 7) Replace the TA board. |
| Error code: | 75 |
| Display: | [TRAY x] NOT INSTALLED |
| Description: | VIC Limutter |
| Causes: | · Loose cable connection · Defective fusing unit clutch · Defective IOD2 board · Defective MCTL board |
| Remedy: | 1) Check for any warping or damage to the cassette (In the case of warping or damage, replace the cassette) |
| Error code: | 76 |
| Display: | Out Bin Full |
| Description: | Fuser Firmware Failure A failure was detected in the Fuser Firmware. |
| Causes: | • Fuser, PL5.1.1 • FSR/ADC Harness, PL5.2.28 • Engine Control Board, PL9.1.16 |
| Remedy: | 1 Check the Fuser for damage. Is the Fuser damaged? Replace the Fuser. Go to Step 2. 2 Check the Fuser connection for damage. Any broken or bent pins? Repair or replace the parts. Go to Step 3. 3 Replace the Fuser. Does the error persist? Go to Step 4. Complete 4 Check all pins on the FSR/ADC Harness PL5.2.28 for continuity. 1. Disconnect P/J36 and P/J361. 2. Check continuity between J36 <=> J361. Replace the Engine Control Board. Replace the FSR/ ADC Harness. |
| Error code: | 78 |
| Display: | WRONG PAPER SIZE [PAPER] IN [TRAY x] |
| Description: | Waste Cartridge Full Detection Sensor Failure, Code 78 |
| Causes: | • Waste Cartridge • Waste Cartridge Full Sensor • Engine Control Board |
| Remedy: | 1 1. Remove the waste cartridge sensor holder without disconnecting the harnesses. 2. Measure the voltage between the yellow wire on the waste cartridge full sensor and frame ground, alternately interrupting the sensor. 3. Does the voltage toggle between +5 and 0 VDC? Go to step 5. Go to step 2. 2 1. Measure the voltage between the gray wire and frame ground. 2. Does the voltage measure +5 VDC? Go to step 4. Go to step 3. 3 1. Remove the rear cover and rear shield. 2. Measure the voltage at J407B-17 on the engine control board. 3. Does the voltage measure +5 VDC? Inspect the wiring harness for damage and replace, if necessary. Replace the engine control board. 4 1. Measure the voltage between the violet wire and frame ground. 2. Does the voltage measure 0 VDC? Replace the waste cartridge full sensor. Inspect the wiring harness for damage and replace, if necessary. 5 1. Remove the rear cover and rear shield. 2. Measure the voltage at J407B-16 on the engine control board. 3. Alternately interrupt the sensor 4. Does the voltage toggle between +5 and 0 VDC? Replace the engine control board. Inspect the wiring harness for damage and replace, if necessary. |
| Error code: | 7A |
| Display: | Unable to clean 7A |
| Description: | No detection of the main motor lock signal. |
| Causes: | Main motor failure. Main PCB failure. |
| Remedy: | 1 Main motor failure Replace the main motor ASSY. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7B |
| Display: | Unable to clean 7B |
| Description: | Main PCB failure |
| Causes: | Main PCB failure |
| Remedy: | 1 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7C |
| Description: | Communication error between the engine PCB and main PCB. |
| Causes: | 1 Main PCB failure |
| Remedy: | Replace the main PCB ASSY. |
| Error code: | 7D |
| Display: | Unable to clean 7D |
| Description: | Dirt on drum unit |
| Causes: | Dirt or dust on drum unit electrodes. HVPS PCB failure. Main PCB failure. |
| Remedy: | 1 Dirt or dust on drum unit electrodes Clean the electrodes on the drum unit. ( p.271 "Electrodes location on the drum unit") 2 HVPS PCB failure Replace the HVPS PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7E |
| Display: | Unable to print 7E |
| Description: | Head property information not input. |
| Remedy: | 1 Head property information not input Input the head property information. 2 Main PCB defective Replace the Main PCB ASSY. |
| Error code: | 7F |
| Description: | Fax paper setting mismatch (The setting paper becomes besides the A4/Letter/Legal/Folio.) |
| Causes: | Main PCB failure |
| Remedy: | 1 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 80 |
| Display: | ERROR 80 FORMAT |
| Description: | Engine Logic Board Failure, Code 80 |
| Remedy: | 1. Cycle power to the printer to clear the error. 2. Did this clear the error? Complete Replace the engine control board or the image processor board. |
| Error code: | 83 |
| Display: | h`******** |
| Description: | Engine Logic Board NVRAM Failure, Code 83 |
| Remedy: | 1. Cycle power to the printer to clear the error. 2. Did this clear the error? Complete. Replace in the following order: • engine control board • image processor board |
| Error code: | 84 |
| Display: | h`******** |
| Description: | Controller to Engine Logic Board Time Failure, Code 84 |
| Remedy: | 1. Cycle power to the printer to clear the error. 2. Did this clear the error? Complete. Replace the engine control board. |
| Error code: | 88 |
| Display: | Paper Jam |
| Description: | Lower Tray Communication Failure, Code 88 |
| Causes: | • Engine Control Interface Board • Tray module board • Engine Control board |
| Remedy: | 1 Is J668-1 on the tray module board +5 VDC? Go to step 2. Use the wirenets to troubleshoot and repair the open wire. 2 Is J668-3 on the tray module board +24 VDC? Go to step 3. Use the wirenets to troubleshoot and repair the open wire. 3 1. Check the following connectors for continuity: • P669-1 to J534A-15 • P669-2 to J534A-14 • P669-3 to J534A-13 • P669-4 to J534A-12 • P669-5 to J534A-11 • P669-6 to J534A-10 2. Do all checks indicate continuity? Replace in the following order: • engine control interface board • tray module board • engine control board Check and repair broken wires or bad connectors. |
| Error code: | 89 |
| Display: | 89 |
| Description: | ITU Maintenance |
| Causes: | Registration rear sensor failure. Main PCB failure |
| Remedy: | Check the ITU Release Lever for correct operation. The ITU Release Lever is the black lever located on the left upper side frame above the ITU opening and can be seen by opening and lowering the MPF Assembly. When locked the lever should be at the 6 o`clock position. When unlocked it should be in a 3 o`clock position. Undue pressure is not required to operate the lever Turn the printer off, insert the ITU, move the lever to the 6 o`clock position, and turn the printer back on. If this does not resolve, replace the “ITU assembly”. Press Go to continue. The message persists until replacement. |
| Error code: | 8A |
| Display: | Paper Jam |
| Description: | Paper jam in Tray 1 (T1) (It is detects by the registration front sensor) |
| Causes: | Harness connection failure of registration front sensor PCB ASSY. Paper feed roller worn out. Registration front sensor PCB failure. Main PCB failure. |
| Remedy: | 1 Harness connection failure of registration front sensor PCB ASSY Check the harness connection of the registration front sensor PCB ASSY in the appropriate tray, and reconnect it. 2 Paper feed roller worn out Replace the paper feed roller. 3 Registration front sensor PCB failure Check the sensor performance following the procedure ( p.183 "Operational Check of Sensors (Function code 32)"). If any problem occurs, replace the registration front sensor PCB ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 8D |
| Description: | Paper jam near paper eject tray (When power on, it is detects by the eject sensor.) |
| Causes: | Paper eject actuator not operating smoothly catching in some position. Eject sensor PCB ASSY failure. Main PCB failure. |
| Remedy: | 1 Paper eject actuator not operating smoothly catching in some position. Re-assemble the paper eject actuator. Ensure the paper eject sensor operates smoothly. 2 Eject sensor PCB ASSY failure Replace the eject sensor PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 9A |
| Description: | No paper is loaded in the MP tray (MP paper empty sensor fails to be turned ON.) |
| Causes: | 1 Main PCB failure |
| Remedy: | Replace the main PCB ASSY. |
| Error code: | 9B |
| Description: | Request on developing bias voltage adjustment |
| Error code: | 9C |
| Description: | Life of toner cartridge (Continue mode) |
| Causes: | • Replace a new toner cartridge. |
| Remedy: | 1 New toner actuator catching on some position Correct the position of the new toner actuator. 2 Harness connection failure of new toner sensor PCB Check the harness connection of the new toner sensor PCB and reconnect it. 3 New toner sensor PCB failure Replace the new toner sensor PCB. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | A1 |
| Display: | Cover is Open |
| Description: | Jam at Door A |
| Causes: | • Tray 1 (MPT) Feed Roller, PL10.1.53 • Tray 1 (MPT) Pick Roller, PL10.1.43 • Tray 1 (MPT) Retard Roller, PL10.1.16 • Registration Clutch #1, PL8.1.85 • Tray 2 Registration Motor, PL4.2.36 • Tray 2 Feed Motor, PL4.2.35 • Front Sensor Board, PL4.2.97 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Tray 1 (MPT) Feed Rollers • Registration Rollers • Sensor Actuator Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Registration #1 Sensor. Run the Service Diagnostics Registration Entrance Sensor test. Does the sensor operate correctly? Go to Step 3. Replace the actuator. If the error persists, replace the Front Sensor Board. 3 Test the Feed Motor, Registration Motor, and Registration Clutch #1. Do the components function correctly? Replace the Engine Control Board. Go to Step 4. 4 Check the harness for each motor and clutch. Are the wiring harnesses properly connected and free from defects? Replace the Engine Control Board. Replace the wiring harness and/or the problem motor/ clutch. |
| Error code: | A2 |
| Display: | DOCUMENT JAM |
| Description: | Jam at Door A |
| Causes: | • Duplex Unit, PL16.1.0 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Door A • Door D • Duplex Unit Rollers • Duplex Unit connector • Duplex Sensors and Actuators Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Duplex Unit sensors. Run the Service Diagnostics for each of the four Duplex Unit sensors. Do the sensors and actuators function correctly Go to Step 3. Replace the damaged sensor. 3 Test the Duplex Unit motors. Run the Service Diagnostics Duplex Motor tests. Do the motors function correctly Go to Step 4. Replace the Duplex Unit 4 Inspect the wiring harness for the Duplex Unit. Is the wiring harness properly connected and free from defects? Replace the Duplex Unit. Replace the Engine Control Board. |
| Error code: | A3 |
| Display: | DOCUMENT JAM |
| Description: | Jam at Door A Misfeed at Tray 1 (MPT) Media reached the Duplex Reverse Sensor, but a second sheet was detected entering the feed path from Tray 1 (MPT). This error represents a misfeed jam for media fed from Tray 1 (MPT). |
| Causes: | • Tray 1 (MPT) Feed Roller, PL10.1.53 • Tray 1 (MPT) Pick Roller, PL10.1.43 • Tray 2 Registration Motor, PL4.2.36 • Tray 2 Feed Motor, PL4.2.35 • Front Sensor Board, PL4.2.97 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Tray 1 (MPT) Feed Rollers • Registration Rollers • Sensor Actuator Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Registration #1 Sensor. Run the Service Diagnostics Registration Entrance Sensor test. Does the sensor operate correctly? Go to Step 3. Replace the actuator. If the error persists, replace the Front Sensor Board. 3 Test the Feed Motor, Registration Motor, and Registration Clutch #1. Do the components function correctly? Replace the Engine Control Board. Go to Step 4. 4 Check each motor and clutch harness. Are the harnesses properly connected and free from defects? Replace the Engine Control Board. Replace the harness and/or problem motor/ clutch. |
| Error code: | A4 |
| Display: | Cover is Open |
| Description: | Sorter problem |
| Causes: | • Defective engine gate array • Defective fuse cut circuit on the engine board |
| Remedy: | Correct catching of the ADF cover open sensor. Replace the ADF cover. Replace the ADF cover open sensor. Replace the ADF relay PCB ASSY. Replace the main PCB ASSY. |
| Error code: | A5 |
| Display: | Unable to Scan A5 |
| Description: | ADF interlock |
| Causes: | Scanning failure. |
| Remedy: | 1 Scanning failure Turn the power switch off and on. Then, try scanning again. |
| Error code: | A6 |
| Display: | A6-Bypass Feeder Jam |
| Description: | Paper did not exit the Multi-sheet Bypass Feeder properly, causing a paper jam. Open Cover A and refer to the labels on the printer to clear the jam. |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1. Ensure the correct weight and type of paper is loaded in the feeder. Also ensure the paper is loaded correctly in the feeder. 2. Clean the bypass feeder’s pick roller. 3. Test the main feed motor as described in “Motor and clutch tests”. Replace the main feed motor. 5. Replace the engine controller board. |
| Error code: | A7 |
| Display: | A7-Duplex Entry Jam |
| Description: | Paper did not enter the duplex module properly, causing a paper jam. Open Cover A and refer to the labels on the printer to clear the jam. |
| Causes: | Power supply fan error |
| Remedy: | 1. Ensure the correct weight and type of paper is loaded in the currently used tray. Also ensure the paper is loaded correctly in the tray. 2. Clean the duplex unit’s rollers. 3. Test the duplex motor and clutch as described in “Motor and clutch tests”. Replace the duplex unit. 5. Replace the engine controller board. |
| Error code: | A8 |
| Display: | Unable to Scan A8 |
| Description: | ADF exit interlock |
| Causes: | Ozone fan error |
| Remedy: | Replace the CCD module. Replace the main PCB ASSY. |
| Error code: | AD |
| Description: | DMA transfer error |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY |
| Error code: | AF |
| Display: | Unable to Scan AF |
| Description: | FB unit home position failure |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | B0 |
| Description: | DIS (GI) could not detected. |
| Causes: | Scanner harness not connected correctly. Scanner harness broken. Main PCB failure |
| Remedy: | This may happen in some cases of bad line condition. Attempt the transmission again. |
| Error code: | B1 |
| Description: | Jam at Door B Misfeed at Tray 2 Media reached Feed-Out Sensor #2, but did not arrive at the Transfer Unit Entrance Sensor on time. This error represents a misfeed jam for media fed from Tray 2. |
| Causes: | • Feeder Assembly, PL4.2.0 • Registration Sensor #2, PL4.2.89 • Registration Clutch #2, PL4.2.87 • Tray 2 Registration Motor, PL4.2.36 • Tray 2 Feed Motor, PL4.2.35 • Feeder Board, PL4.2.97 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Door B • Tray 2 Feed Rollers • Registration Rollers • Transport Rollers • Sensor Actuators Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Tray 2 sensors. Run the Service Diagnostics Tray 2 Switches test. Do the sensors function correctly? Go to Step 4. Go to Step 3. 3 Check the TRYSNS1 harness continuity. Is the harness conductive? Replace the sensor. If the error persists, replace the Feeder Board. Replace the harness. 4 Test the Tray 2 Feeder Motors. Run the Service Diagnostics Tray 2 Motor tests for the Feed and Registration Motors. Do the motors function correctly? Go to step 6. Go to Step 5. 5 Check the REGHOP harness continuity. Is the harness conductive? Replace the motor. If the error persists, Go to Step 8. Replace the harness. 6 Test the Registration Clutch #2 Run the Service Diagnostics Tray 2 Clutch test. Does the clutch function correctly? Go to step 10. Go to step 7. 7 Check the CL1 harness continuity. Is the harness conductive? Replace the clutch. If the error persists, go to Step 8. Replace the harness. 8 Check for +24 V to the Motor Driver Board. Disconnect POW24. Is there +24 V across POW24-1 and 2? Replace the Motor Driver Board. Go to Step 9. 9 Check for 24 V at the LVPS 1. Disconnect CN2 on the LVPS. Is there +24 V across pins 1 and 2? Replace the POW24 Harness. Replace the LVPS. 10 Check the Registration Assembly for gaps between the rollers. Is there a gap between the Registration Rollers? Replace the Registration Assembly. Go to Step 11. 11 Check the DRV1 harness continuity. Is the harness conductive? Replace the Motor Driver Board. If the error persists, replace the Engine Control Board Replace the harness. |
| Error code: | B2 |
| Description: | DCN is received. |
| Causes: | • Defective gate array U204 on the engine board (KP-864). • Defective harness (S02400) between engine board and option unit interface connector. • Defective paper feeder PF-60. |
| Remedy: | This may happen in some cases of bad line condition. Attempt the transmission again. |
| Error code: | B3 |
| Description: | DCS/DTC was not detected. |
| Causes: | • Defective gate array U204 on the engine board (KP-864). • Defective harness (S02400) between engine board and option unit interface connector. • Defective option paper feeder PF-60. |
| Remedy: | This may happen in some cases of bad line condition. Attempt the transmission again. |
| Error code: | B4 |
| Description: | The sender performed fall-back but the transmission was not enabled. The receiver performed time-out after sending FTT. Or DCN is received. |
| Causes: | • Defective gate array U204 on the engine board (KP-864). • Defective harness (S02400) between engine board and option unit interface connector. • Defective paper feeder PF-60. |
| Remedy: | This may happen in some cases of bad line condition. Attempt the transmission again. Or ask the remote party to attempt the transmission again. |
| Error code: | B7 |
| Description: | Detection error of scanner (Scanning reference voltage adjustment malfunction.) |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | B8 |
| Display: | B8-Duplex Jam |
| Description: | Paper did not enter the duplex module properly, causing a paper jam. Open Cover B and refer to the labels on the printer to clear the jam. |
| Causes: | Cyan developing unit movement error |
| Remedy: | 1. Ensure the correct weight and type of paper is loaded in the currently used tray. Also ensure the paper is loaded correctly in the tray. 2. Clean the duplex unit’s rollers. 3. Test the duplex motor and clutch as described in “Motor and clutch tests”. Replace the duplex unit. 5. Replace the engine controller board. |
| Error code: | B9 |
| Description: | Scanning light adjustment error is detected. |
| Causes: | FB unit failure. Main PCB failure |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | BB |
| Description: | White level data error |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | BD |
| Display: | Unable to Scan BD |
| Description: | Engine EEPROM check error. Printing is continued. |
| Causes: | Engine EEPROM check error |
| Remedy: | Replace the CCD module. Replace the main PCB ASSY. |
| Error code: | C0 |
| Description: | Image signal carrier was not detected. |
| Causes: | • Defective gate array U204 on the engine board (KP-864). • Blown-out fuse (F202) on the engine board. • Improper installation between printer and option paper feeder. • Defective harness (S02400) between engine board and option unit interface connector. • Improper connector insertion. • Defective option paper feeder PF-60. |
| Remedy: | This may happen in some cases of bad line condition. Ask the remote party to transmit again. |
| Error code: | C7 |
| Display: | SVC C7 ERROR |
| Description: | Error C7 |
| Causes: | • If the Master removal 5 times. |
| Remedy: | 1. Check if any thermistor connector is disconnected. 2. Check if any harness of the thermistors (center/rear, upper/lower) is open-circuited. 3. Check the LGC board if the connector J122 is disconnected. 4. After completing the repair of what caused the [C7] problem, proceed to rewrite the status counter (08-700) to "0", following the same procedure as for [C41] to [C48] . |
| Error code: | C8 |
| Description: | Paper stays in tray or duplex or HCF |
| Causes: | • If the Ink sensor does not detect ink in the Squeegee unit within 20 seconds after the Inking motor was activated. • If the Ink sensor does not detect ink in the Squeegee unit within 40 seconds after the Inking motor was activated when the Ink bottle is installed just after replacing empty ink bottle. |
| Remedy: | Ink bottle set sensor OFF & 5 seconds later ON. |
| Error code: | D1 |
| Display: | SVC D1 ERROR |
| Description: | Jam at Door D Open Door D to Clear Media reached Duplex Reverse Sensor, but did not leave the Duplex Unit on time. This error represents a misfeed jam inside the Duplex Unit. |
| Causes: | • Duplex Unit, PL16.1.0 |
| Remedy: | 1 Check the following for evidence of fault or damage: • Duplex Unit Entrance Roller • Duplex Unit Connector • Duplex Unit Is there any damage or debris? Replace any damaged parts. Go to Step 2. 2 Test the Duplex Entrance, Reverse, Front, and Rear actuators and sensors using Service Diagnostics. Do the sensors and actuators function correctly? Go to Step 3. Replace the Duplex Unit. 3 Test the Duplex Motors using Service Diagnostics. Do the motors function correctly? Go to Step 4. Replace the Duplex Unit. 4 Inspect the DUPLEX harness. If defective, replace the wiring harness. Is the harness properly seated and free from defects? Replace the Motor Driver Board. Replace the Duplex Unit. |
| Error code: | DD |
| Description: | Fuser error other than 58, 59, 68, 69, 6A, 6B, 6C, 6D, 6E, 6F, 76, 78, DE and E2 are occurred |
| Causes: | Fuser unit failure. Main PCB failure. LVPS PCB failure |
| Remedy: | Replace the fuser unit. Replace the main PCB ASSY. Replace the LVPS PCB ASSY. |
| Error code: | DE |
| Description: | Imaging Unit type mismatch |
| Causes: | Imaging Unit being used is not intended for use with the printer. |
| Remedy: | Reconnect the relay rear PCB ASSY connector correctly. Replace the fuser unit. Replace the main PCB ASSY. |
| Error code: | E0 |
| Display: | SVC E0 ERROR |
| Description: | Machine has reset |
| Causes: | • Error with CPU and gate arrays of either the engine or main controller • Connection error between the engine board and the main controller board • Program overrun in the engine or main controllere |
| Remedy: | Remove the cause of the printer error, then ask the remote party to transmit again. |
| Error code: | E2 |
| Display: | SVC E2 ERROR |
| Description: | Reset signal happened. Might read E-2 something else. |
| Error code: | E6 |
| Display: | SVC E6 ERROR |
| Description: | Right side interlock |
| Causes: | • If Position-A sensor cannot be detected (or keeps detecting) even though the Main motor encoder sensor signal is making the output after the Main motor is activated. |
| Remedy: | Confirm details of the error using the error code and correct the error. Then ask the remote party to transmit again. |
| Error code: | EC |
| Display: | Unable to print EC |
| Description: | ADF jam |
| Causes: | Harness connection failure of fan motor. Fan motor failure. Main PCB failure. |
| Remedy: | 1 Harness connection failure of fan motor Check the harness connection of the fan motor, and reconnect it. 2 Fan motor failure Replace the fan motor. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | ED |
| Display: | Touchscreen Init. Failed |
| Description: | ADF jam |
| Causes: | . Data readout error on the flash ROM |
| Remedy: | Developer Motor Are the connectors connect with the Developer Motor properly? No Connect properly. Control PCB (PW10620) Enter the Service Mode and select the Manual Charging Test of the Function Checking Mode. (Refer to the page 8-24.) 1. Does the voltage between the CN106-4 (+) and CN106-6 (-) on the Control PCB (PW10620) change to about 6V to 0V when the Developer Motor rotates? 2. Is the voltage between CN211-4 (+) and CN211-1 (-) on the Control PCB (PW10620) about 24V during the Ready condition? No Replace the Control PCB (PW10620) with the new one. Developer Motor Motor Control PCB Replace the Developer Motor or the Motor Control PCB with the new one. |
| Error code: | EE |
| Display: | EE-Transfer Belt Unit Missing |
| Description: | The transfer belt is either missing or requires reseating to be recognized by the printer. Turn off the printer, make sure the transfer belt is properly installed and turn on the printer. |
| Causes: | LD Signal is detected for 1 seconds continuously while the Main Motor is rotating. |
| Remedy: | 1. Remove and re-install the transfer belt unit. 2. Clean the transfer belt unit’s contact on the front-left side of the engine chassis. Clean the corresponding contacts on the transfer belt unit. 3. Install a new transfer belt unit. 4. Replace the engine controller board. 5. Replace the printer unit chassis. |
| Error code: | EF |
| Display: | EF-Fuser Unit Missing |
| Description: | The fuser is either missing or requires reseating to be recognized by the printer. Turn off the printer, make sure the fuser is properly installed and turn on the printer. If the problem persists, install a new fuser. |
| Causes: | LVPS PCB failure. Main PCB failure |
| Remedy: | 1. Remove and reinstall the fuser. 2. install a new fuser. 3. Replace the low-voltage power supply. 4. Replace the engine controller board. |
| Error code: | F0 |
| Display: | SVC F0 ERROR |
| Description: | The communication ended because of a WDT due to an overrun of the software. |
| Causes: | Defective main controller PWB. Defective operator panel PWB. Defective mainengine controllers relay PWB. Defective engine controller PWB . Defective harness between engine controller PWB and operator panel PWB, or poor contact of the connector terminals. |
| Remedy: | Attempt the communication again. If the error occurs frequently, perform a memory clear (except user area.) |
| Error code: | F9 |
| Description: | Collator bin home switch |
| Causes: | Turn the power off, when the Maintenance mode 74 is in progress. |
| Remedy: | 1 Turn the power off, when the Maintenance mode 74 is in progress. Implement the Maintenance mode 74 again. |
