Brother DCP-7045N
Рейтинг
Снят с производства
Тип устройства
МФУ
Технология печати
лазерная
Макс. формат
A4
Цветность печати
черно-белая
Общие характеристики |
|
|---|---|
Технология печати |
лазерная |
Тип |
лазерный/светодиодный |
Цветность печати |
|
Копир |
|
Сканер |
|
Тип устройства |
МФУ |
Печать фотографий |
|
Телефон |
|
Размещение |
настольный |
Макс. формат |
A4 |
Факс |
|
Принтер |
|
Время разогрева |
18 |
Прямая печать |
|
Пигментные чернила |
|
Двусторонняя печать |
|
Печать без полей |
|
Макс, разрешение для ч/б печати |
|
| По X | 2 400 |
| По Y | 600 |
Скорость цветной печати |
|
| A4 | 22 |
Время выхода первого отпечатка |
|
| Ч/б | 10 |
Копир |
|
Макс, количество копий за цикл |
99 |
Время выхода первой копии |
15 |
Шаг масштабирования |
0,01 |
Значение масштаба |
|
| Минимальное | 0,25 |
| Максимальное | 4 |
Макс, разрешение (ч/б) |
|
| По X | 600 |
| По Y | 600 |
Сканер |
|
Устройство автоподачи оригиналов |
одностороннее |
Макс. формат оригинала |
A4 |
Отправка изображения по e-mail |
|
Оттенки серого |
256 |
Глубина цвета |
48 бит |
Тип сканера |
планшетный/протяжный |
Емкость устройства автоподачи оригиналов |
35 |
Макс, размер сканирования |
|
| По X | 216 |
| По Y | 297 |
Разрешение сканера |
|
| По Х | 600 |
| По Y (улучшенное) | 19 200 |
| По Х (улучшенное) | 19 200 |
| По Y | 2 400 |
Расходные материалы |
|
Ресурс ч/б картриджа/тонера |
1 500 |
Количество картриджей |
1 |
Печать на: |
|
| Рулоне |
|
| Фотобумаге |
|
| CD/DVD |
|
| Карточках |
|
| Матовой бумаге |
|
| Пленках |
|
| Этикетках |
|
| Глянцевой бумаге |
|
| Конвертах |
|
Плотность бумаги |
|
| Максимальная | 163 |
| Минимальная | 60 |
Факс |
|
Цветной |
|
Телефон |
|
Автоответчик |
|
Caller ID |
|
Спикерфон |
|
АОН |
|
Стандарт DECT |
|
Проводная трубка |
|
Беспроводная трубка |
|
Языки управления |
|
| PCL 6 |
|
| PostScript |
|
| PostScript 3 |
|
|
|
|
| PCL 5c |
|
| PostScript 2 |
|
| PPDS |
|
| PCL 5e |
|
Лотки |
|
Подача бумаги |
|
| Стандартная | 250 |
Вывод бумаги |
|
| Стандартный | 100 |
Финишер |
|
Электронная сортировка |
|
Сортировка со сдвигом |
|
Сортер |
|
Брошюровщик |
|
Степлер |
|
Интерфейсы |
|
Версия USB |
2,0 |
USB |
|
Веб-интерфейс |
|
Ethernet (RJ-45) |
|
Устройство для чтения карт памяти |
|
Инфракрасный порт |
|
LPT |
|
FireWire (IEEE 1394) |
|
Wi-Fi |
|
Bluetooth |
|
RS-232 |
|
Память/Процессор |
|
Объем памяти |
32 |
Частота процессора |
192 |
Дополнительная информация |
|
Мин. системные требования |
Intel Pentium II |
Экран |
|
Работа от аккумулятора |
|
Поддержка ОС |
|
| Mac OS |
|
| Windows |
|
| Linux |
|
| DOS |
|
Потребляемая мощность |
|
| В режиме ожидания | 75 |
| При работе | 320 |
Уровень шума |
|
| При работе | 53 |
| В режиме ожидания | 32 |
Габариты |
|
Ширина |
428 |
Вес |
11,1 |
Высота |
304 |
Глубина |
396 |
Модули
DOCUMENT SCANNER
PCB
ADF
(Узел термозакрепления)
FUSER UNIT
MAINTENANCE PARTS
PANEL
FRAME UNIT
LASER UNIT
PAPER TRAY
COVERS & LABELS
PAPER FEEDER
Детали COVERS
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7030/ DCP7032/ DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 EXCEPT FOR CHN |
| Парткод: | LS1225001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), MFC7840N FOR ASA/ IND, MFC7840W |
| Парткод: | LS1225002 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), DCP7030/ DCP7040/ MFC7340/ MFC7450 FOR CHN |
| Парткод: | LS1756001 |
| Деталь: | DOCUMENT SCANNER UNIT (SP), MFC7840N FOR CHN |
| Парткод: | LS1756002 |
| Деталь: | MAIN PCB ASSY, DCP7030/ DCP7032 EXCEPT FOR CHN |
| Парткод: | LT0289001 |
| Деталь: | MAIN PCB ASSY, DCP7040 EXCEPT FOR CHN |
| Парткод: | LT0203051 |
| Деталь: | MAIN PCB ASSY, DCP7045N |
| Парткод: | LT0225001 |
| Деталь: | MAIN PCB ASSY, MFC7320, MFC7340 FOR ASA/ KOR/ IND/ OCE |
| Парткод: | LT0226004 |
| Деталь: | MAIN PCB ASSY, MFC7340 FOR US/ CAN |
| Парткод: | LT0226001 |
| Деталь: | MAIN PCB ASSY, MFC7345N/ MFC7440N FOR US/ CAN |
| Парткод: | LT0151051 |
| Деталь: | MAIN PCB ASSY, MFC7840W FOR US/ CAN |
| Парткод: | LT0204051 |
| Деталь: | MAIN PCB ASSY, MFC7440N FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ POR/ ZAF/ ARG/ CHL/ GUL/ BRA/ RUS/ OCE/ PND/ EEU |
| Парткод: | LT0151004 |
| Деталь: | MAIN PCB ASSY, MFC7840W FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ POR/ ARG/ CHL/ GUL/ BRA/ RUS/ OCE/ PND/ EEU |
| Парткод: | LT0204004 |
| Деталь: | MAIN PCB ASSY, DCP7030 FOR CHN |
| Парткод: | LT0289020 |
| Деталь: | MAIN PCB ASSY, DCP7040 FOR CHN |
| Парткод: | LT0203020 |
| Деталь: | MAIN PCB ASSY, MFC7340 FOR CHN |
| Парткод: | LT0226020 |
| Деталь: | MAIN PCB ASSY, MFC7450 FOR CHN |
| Парткод: | LT0474020 |
| Деталь: | MAIN PCB ASSY, MFC7840N FOR CHN |
| Парткод: | LT0473020 |
| Деталь: | MAIN PCB ASSY, MFC7450 FOR ASA/ KOR/ IND |
| Парткод: | LT0474040 |
| Деталь: | MAIN PCB ASSY, MFC7840N FOR ASA/ IND |
| Парткод: | LT0473040 |
| Деталь: | BATTERY ASSY, MFC7450/ MFC7840N/ MFC7840W |
| Парткод: | LG5921001 |
| Деталь: | NCU PCB ASSY, MFC7340/ MFC7345N/ MFC7440N FOR US |
| Парткод: | LT0866001 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR US |
| Парткод: | LT0867001 |
| Деталь: | NCU PCB ASSY, MFC7340/ MFC7440N FOR CAN |
| Парткод: | LT0866002 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR CAN |
| Парткод: | LT0867002 |
| Деталь: | NCU PCB ASSY, MFC7320/ MFC7440N FOR GER |
| Парткод: | LG5923053 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR GER |
| Парткод: | LG5923054 |
| Деталь: | NCU PCB ASSY, MFC7320/ MFC7440N FOR UK/ NLD/ PND |
| Парткод: | LG5923066 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR UK/ NLD/ PND |
| Парткод: | LG5923067 |
| Деталь: | NCU PCB ASSY, MFC7320/ MFC7440N FOR FRA/ BEL/ AUS/ SPA/ ITA/ ISR/ POR/ GUL/ RUS/ EEU |
| Парткод: | LG5923051 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR FRA/ BEL/ AUS/ SPA/ ITA/ POR/ GUL/ RUS/ EEU |
| Парткод: | LG5923065 |
| Деталь: | NCU PCB ASSY, MFC7320/ MFC7440N FOR CHE |
| Парткод: | LG5923055 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR CHE |
| Парткод: | LG5923056 |
| Деталь: | NCU PCB ASSY, MFC7320/ MFC7440N FOR ZAF |
| Парткод: | LG6872002 |
| Деталь: | NCU PCB ASSY, MFC7340/ MFC7440N FOR CHN/ ARG/ CHL/ ASA/ IND |
| Парткод: | LG6190007 |
| Деталь: | NCU PCB ASSY, MFC7450/ MFC7840N/ MFC7840W FOR CHN/ ARG/ CHL/ ASA/ IND |
| Парткод: | LG6190005 |
| Деталь: | NCU PCB ASSY, MFC7440N FOR BRA |
| Парткод: | LG6190008 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR BRA |
| Парткод: | LG6190006 |
| Деталь: | NCU PCB ASSY, MFC7340 FOR KOR |
| Парткод: | LG6190010 |
| Деталь: | NCU PCB ASSY, MFC7450 FOR KOR |
| Парткод: | LG6190009 |
| Деталь: | NCU PCB ASSY, MFC7340/ MFC7440N FOR OCE |
| Парткод: | LG6198004 |
| Деталь: | NCU PCB ASSY, MFC7840W FOR OCE |
| Парткод: | LG6198003 |
| Деталь: | LVPS PCB UNIT FOR US/ CAN/ BRA |
| Парткод: | LT0155001 |
| Деталь: | LVPS PCB UNIT FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ ISR/ POR/ ZAF/ ARG/ CHL/ GUL/ OCE/ PND/ IBR/ EEU, DCP7030/ DCP7040 FOR ASA/ KOR |
| Парткод: | LT0209001 |
| Деталь: | LVPS PCB UNIT FOR CHN/ IND/ RUS |
| Парткод: | LT0156001 |
| Деталь: | LVPS PCB UNIT, MFC7340/ MFC7450/ MFC7840N FOR ASA/ KOR |
| Парткод: | LT0245001 |
| Деталь: | HIGH-VOLTAGE PS PCB ASSY |
| Парткод: | LV0047001 |
| Деталь: | ADF UNIT ASSY (SP), DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS1219001 |
| Деталь: | ADF UNIT ASSY (SP), MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS1219003 |
| Деталь: | ADF UNIT ASSY (SP), MFC7840N/ MFC7840W |
| Парткод: | LS1219002 |
| Деталь: | HINGE ASSY L EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LS0939001 |
| Деталь: | HINGE R |
| Парткод: | LS1952001 |
| Деталь: | TAPTITE CUP B M3X10 EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | 87311016 |
| Деталь: | TAPTITE CUP S M3X12 EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | 87321217 |
| Деталь: | EMBLEM, DCP7040 |
| Парткод: | LS0870001 |
| Деталь: | EMBLEM, DCP7045N |
| Парткод: | LS0871001 |
| Деталь: | EMBLEM, MFC7320/ MFC7340/ MFC745C |
| Парткод: | LS0503001 |
| Деталь: | EMBLEM, MFC7345N/ MFC7440N |
| Парткод: | LS0869001 |
| Деталь: | EMBLEM, MFC7840N |
| Парткод: | LS0869002 |
| Деталь: | EMBLEM, MFC7840W |
| Парткод: | LS0868001 |
| Деталь: | DOCUMENT COVER (SP), DCP7030/ DCP7032 |
| Парткод: | LS1938001 |
| Деталь: | HINGE L, DCP7030/ DCP7032 |
| Парткод: | LS0401001 |
| Цена: | 220 ₽ |
| Деталь: | HINGE ARM, DCP7030/ DCP7032 |
| Парткод: | LF6165001 |
| Деталь: | TAPTITE BIND B M4X12, DCP7030/ DCP7032 |
| Парткод: | 85411216 |
| Деталь: | DCP EMBLEM, DCP7030 |
| Парткод: | LS0721001 |
| Деталь: | DCP EMBLEM, DCP7032 |
| Парткод: | LS0721002 |
| Деталь: | HINGE L SUPPORT, DCP7030/ DCP7032 |
| Парткод: | LS1690001 |
| Деталь: | DOCUMENT COVER SUB ASSY, GRAY(1581), DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0360001 |
| Деталь: | DOCUMENT COVER SUB ASSY, GRAY(1581), MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0360003 |
| Деталь: | DOCUMENT COVER SUB ASSY, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0360002 |
| Деталь: | LOWER DOCUMENT CHUTE ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LS0365001 |
| Деталь: | UPPER DOCUMENT CHUTE ASSY, GRAY(1581), DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC745C |
| Парткод: | LS0366001 |
| Деталь: | UPPER DOCUMENT CHUTE ASSY, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0366002 |
| Деталь: | SEPARATE ROLLER SHAFT ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LP2601001 |
| Цена: | 2 200 ₽ |
| Деталь: | SEPARATE ROLLER BUSHING EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | UF9949001 |
| Деталь: | GEAR COVER, GRAY(1581), DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC745C |
| Парткод: | LS0371001 |
| Деталь: | GEAR COVER, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0371002 |
| Деталь: | ADF COVER ASSY, GRAY(1581), DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC745C |
| Парткод: | LS0372001 |
| Деталь: | ADF COVER ASSY, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0372002 |
| Деталь: | HINGE ARM EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LF6165001 |
| Деталь: | DOCUMENT STOPPER, GRAY(1736), DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0363001 |
| Деталь: | DOCUMENT STOPPER, GRAY(1861), MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0363003 |
| Деталь: | DOCUMENT STOPPER, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0363002 |
| Деталь: | DOCUMENT DRESS COVER, GRAY(1736), DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0364001 |
| Деталь: | DOCUMENT DRESS COVER, GRAY(1861), MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0364003 |
| Деталь: | DOCUMENT DRESS COVER, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0364002 |
| Деталь: | TAPTITE CUP B M3X8 EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | 87310816 |
| Деталь: | TAPTITE BIND B M4X12 EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | 85411216 |
| Деталь: | DRIVE FRAME ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LS0536001 |
| Деталь: | ADF SEN PCB ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LG7146001 |
| Деталь: | EJECTION ROLLER ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LF6577001 |
| Цена: | 1 700 ₽ |
| Деталь: | EJECTION ROLLER BUSHING EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LF4230001 |
| Деталь: | LF ROLLER ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LF6579001 |
| Цена: | 1 300 ₽ |
| Деталь: | LF ROLLER BUSHING EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | UF0026001 |
| Деталь: | SEPARATION RUBBER ASSY EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LS0978001 |
| Деталь: | ADF MOTOR EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | LF9081001 |
| Деталь: | TAPTITE BIND S M3X6 EXCEPT FOR DCP7030/ DCP7032 |
| Парткод: | 85320616 |

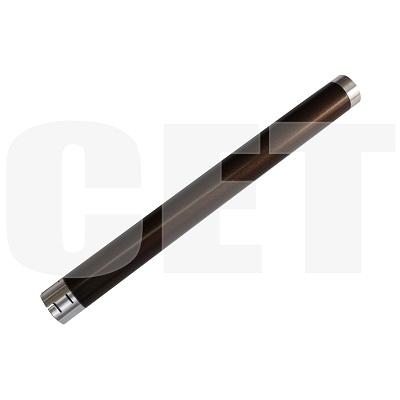

| Деталь: | Тефлоновый вал |
| Парткод: | CET6494 |
| Цена: | 1 100 ₽ |
| Деталь: | FUSER UNIT 230V (SP) FOR IND |
| Парткод: | LU2854001 |
| Деталь: | FUSER UNIT 115V (SP) FOR US/ CAN/ BRA |
| Парткод: | LU2373001 |
| Деталь: | FUSER UNIT 230V (SP) FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ ISR/ POR/ CHN/ ZAF/ ARG/ CHL/ ASA/ GUL/ KOR/ RUS/ OCE/ PND/ IBR/ EEU |
| Парткод: | LU2374001 |
| Цена: | 20 900 ₽ |
| Деталь: | TAPTITE PAN B M4X14 |
| Парткод: | LJ0395001 |
| Деталь: | ROLLER HOLDER (SP) ASSY |
| Парткод: | LU2545001 |
| Деталь: | PANEL UNIT, DCP7040 EXCEPT FOR CHN, DCP7032 FOR PND |
| Парткод: | LS0494001 |
| Деталь: | PANEL UNIT, DCP7045N |
| Парткод: | LS0926001 |
| Деталь: | PANEL UNIT, MFC7340 FOR US/ CAN/ ASA/ IND/ OCE |
| Парткод: | LS1008001 |
| Деталь: | PANEL UNIT, MFC7345N FOR US |
| Парткод: | LS3322001 |
| Деталь: | PANEL UNIT, MFC7440N FOR US/ CAN/ OCE |
| Парткод: | LS0375001 |
| Деталь: | PANEL UNIT, MFC7840W FOR US/ CAN/ OCE |
| Парткод: | LS0810002 |
| Деталь: | PANEL UNIT, DCP7030 EXCEPT FOR CHN, DCP7032 FOR RUS |
| Парткод: | LS0494002 |
| Деталь: | PANEL UNIT, MFC7320 FOR GER/ AUS |
| Парткод: | LS1582001 |
| Деталь: | PANEL UNIT, MFC7440N FOR GER/ AUS |
| Парткод: | LS1372001 |
| Деталь: | PANEL UNIT, MFC7840W FOR GER/ AUS |
| Парткод: | LS1492002 |
| Деталь: | PANEL UNIT, MFC7320 FOR UK/ BEL/ CHE/ ISR/ ZAF/ GUL/ EEU |
| Парткод: | LS0807001 |
| Деталь: | PANEL UNIT, MFC7440N FOR UK/ BEL/ CHE/ ZAF/ GUL/ EEU |
| Парткод: | LS0804001 |
| Деталь: | PANEL UNIT, MFC7840W FOR UK/ BEL/ CHE/ GUL/ EEU |
| Парткод: | LS0813002 |
| Деталь: | PANEL UNIT, MFC7320 FOR FRA |
| Парткод: | LS1583001 |
| Деталь: | PANEL UNIT, MFC7440N FOR FRA |
| Парткод: | LS1398001 |
| Деталь: | PANEL UNIT, MFC7840W FOR FRA |
| Парткод: | LS1506002 |
| Деталь: | PANEL UNIT, MFC7320 FOR NLD |
| Парткод: | LS1584001 |
| Деталь: | PANEL UNIT, MFC7440N FOR NLD |
| Парткод: | LS1401001 |
| Деталь: | PANEL UNIT, MFC7840W FOR NLD |
| Парткод: | LS1508002 |
| Деталь: | PANEL UNIT, MFC7320 FOR SPA |
| Парткод: | LS1585001 |
| Деталь: | PANEL UNIT, MFC7440N FOR SPA |
| Парткод: | LS1404001 |
| Деталь: | PANEL UNIT, MFC7840W FOR SPA |
| Парткод: | LS1510002 |
| Деталь: | PANEL UNIT, MFC7320 FOR ITA |
| Парткод: | LS1586001 |
| Деталь: | PANEL UNIT, MFC7440N FOR ITA |
| Парткод: | LS1416001 |
| Деталь: | PANEL UNIT, MFC7840W FOR ITA |
| Парткод: | LS1512002 |
| Деталь: | PANEL UNIT, MFC7320 FOR POR |
| Парткод: | LS1587001 |
| Деталь: | PANEL UNIT, MFC7440N FOR POR |
| Парткод: | LS1419001 |
| Деталь: | PANEL UNIT, MFC7840W FOR POR |
| Парткод: | LS1514002 |
| Деталь: | PANEL UNIT, DCP7030 FOR CHN |
| Парткод: | LS1675002 |
| Деталь: | PANEL UNIT, DCP7040 FOR CHN |
| Парткод: | LS1675001 |
| Деталь: | PANEL UNIT, MFC7340 FOR CHN |
| Парткод: | LS1838001 |
| Деталь: | PANEL UNIT, MFC7450 FOR CHN |
| Парткод: | LS1928001 |
| Деталь: | PANEL UNIT, MFC7840N FOR CHN |
| Парткод: | LS1968002 |
| Деталь: | PANEL UNIT, MFC7440N FOR ARG/ CHL |
| Парткод: | LS1565001 |
| Деталь: | PANEL UNIT, MFC7840W FOR ARG/ CHL |
| Парткод: | LS1516002 |
| Деталь: | PANEL UNIT, MFC7450 FOR ASA/ IND |
| Парткод: | LS1048001 |
| Деталь: | PANEL UNIT, MFC7840N FOR ASA/ IND |
| Парткод: | LS1050002 |
| Деталь: | PANEL UNIT, MFC7440N FOR BRA |
| Парткод: | LS1528001 |
| Деталь: | PANEL UNIT, MFC7840W FOR BRA |
| Парткод: | LS1534002 |
| Деталь: | PANEL UNIT, MFC7340 FOR KOR |
| Парткод: | LS3066001 |
| Деталь: | PANEL UNIT, MFC7450 FOR KOR |
| Парткод: | LS3068001 |
| Деталь: | PANEL UNIT, MFC7320 FOR RUS |
| Парткод: | LS1588001 |
| Деталь: | PANEL UNIT, MFC7440N FOR RUS |
| Парткод: | LS1568001 |
| Деталь: | PANEL UNIT, MFC7840W FOR RUS |
| Парткод: | LS1749002 |
| Деталь: | PANEL UNIT, MFC7320 FOR PND |
| Парткод: | LS1589001 |
| Деталь: | PANEL UNIT, MFC7440N FOR PND |
| Парткод: | LS1422001 |
| Деталь: | PANEL UNIT, MFC7840W FOR PND |
| Парткод: | LS1526002 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR US/ CAN/ UK/ FRA/ BEL/ NLD/ ASA/ OCE/ PND/ EEU |
| Парткод: | LS3599001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR GER/ CHE/ EEU [GERMAN] |
| Парткод: | LS1655001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR GER/ CHE/ EEU [GERMAN] |
| Парткод: | LS3593001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR GER/ CHE/ EEU [GERMAN] |
| Парткод: | LS1552001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR US/ CAN/ UK/ FRA/ BEL/ NLD/ ASA/ GUL/ IND/ OCE/ PND/ EEU [ENGLISH] |
| Парткод: | LS1656001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR UK/ FRA/ BEL/ NLD/ PND/ EEU [ENGLISH] |
| Парткод: | LS1633001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR FRA/ BEL/ NLD/ CHE [FRENCH] |
| Парткод: | LS1657001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR FRA/ BEL/ NLD [DUTCH] |
| Парткод: | LS1658001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR FRA/ BEL/ NLD/ CHE [FRENCH] |
| Парткод: | LS3595001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR FRA/ BEL/ NLD [DUTCH] |
| Парткод: | LS3600001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR FRA/ BEL/ NLD/ CHE [FRENCH] |
| Парткод: | LS1553001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR FRA/ BEL/ NLD [DUTCH] |
| Парткод: | LS1634001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR ITA |
| Парткод: | LS1539002 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR ITA |
| Парткод: | LS3597001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR ITA |
| Парткод: | LS1631001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR CHN |
| Парткод: | LS1540002 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR CHN |
| Парткод: | LS1677001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR ARG/ CHL |
| Парткод: | LS1678001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR KOR |
| Парткод: | LS3062002 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR RUS |
| Парткод: | LS1857002 |
| Деталь: | PRINTED PANEL COVER, DCP7032 FOR RUS |
| Парткод: | LS1741001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR RUS |
| Парткод: | LS3612001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR RUS |
| Парткод: | LS1850001 |
| Деталь: | PRINTED PANEL COVER, DCP7032 FOR PND |
| Парткод: | LS3011001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR IBR [SPANISH] |
| Парткод: | LS1659001 |
| Деталь: | PRINTED PANEL COVER, DCP7030 FOR IBR [PORTUGUESE] |
| Парткод: | LS1660001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR IBR [SPANISH] |
| Парткод: | LS3603001 |
| Деталь: | PRINTED PANEL COVER, DCP7040 FOR IBR [PORTUGUESE] |
| Парткод: | LS3605001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR IBR [SPANISH] |
| Парткод: | LS1635001 |
| Деталь: | PRINTED PANEL COVER, DCP7045N FOR IBR [PORTUGUESE] |
| Парткод: | LS1636001 |
| Деталь: | TAPTITE CUP B M3X10 |
| Парткод: | 87311016 |
| Деталь: | ADDRESS LABEL, MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450/ MFC7840N/ MFC7840W |
| Парткод: | LS0385001 |
| Деталь: | PANEL COVER ASSY (SP), DCP7030/ DCP7032/ DCP7040/ DCP7045N EXCEPT FOR CHN |
| Парткод: | LS1411001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7340/ MFC7450 EXCEPT FOR CHN/ KOR |
| Парткод: | LS1412001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7345N/ MFC7440N FOR US/ CAN/ OCE |
| Парткод: | LS1410001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR US/ CAN/ OCE, MFC7840N FOR ASA/ IND |
| Парткод: | LS1410002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR GER/ AUS |
| Парткод: | LS3024001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR GER/ AUS |
| Парткод: | LS1541001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR GER/ AUS |
| Парткод: | LS1541002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR UK/ BEL/ CHE/ ISR/ ZAF/ GUL/ EEU |
| Парткод: | LS1413001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR UK/ BEL/ CHE/ ZAF/ GUL/ EEU |
| Парткод: | LS1414001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR UK/ BEL/ CHE/ GUL/ EEU |
| Парткод: | LS1414002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR FRA |
| Парткод: | LS3027001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR FRA |
| Парткод: | LS1543001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR FRA |
| Парткод: | LS1543002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR SPA |
| Парткод: | LS3026001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR SPA |
| Парткод: | LS1545001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR SPA |
| Парткод: | LS1545002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR ITA |
| Парткод: | LS3025001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR ITA |
| Парткод: | LS1546001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR ITA |
| Парткод: | LS1546002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR NLD |
| Парткод: | LS3029001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR NLD |
| Парткод: | LS1544001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR NLD |
| Парткод: | LS1544002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR POR |
| Парткод: | LS3028001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR POR |
| Парткод: | LS1547001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR POR |
| Парткод: | LS1547002 |
| Деталь: | PANEL COVER ASSY (SP), DCP7030/ DCP7040 FOR CHN |
| Парткод: | LS3002001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7340/ MFC7450 FOR CHN |
| Парткод: | LS3032001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840N FOR CHN |
| Парткод: | LS3023002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR ARG/ CHL |
| Парткод: | LS3017001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR ARG/ CHL |
| Парткод: | LS3017002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR BRA |
| Парткод: | LS3016001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR BRA |
| Парткод: | LS3016002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7340/ MFC7450 FOR KOR |
| Парткод: | LS3212001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR RUS |
| Парткод: | LS3031001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR RUS |
| Парткод: | LS3018001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR RUS |
| Парткод: | LS3018002 |
| Деталь: | PANEL COVER ASSY (SP), MFC7320 FOR PND |
| Парткод: | LS3030001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7440N FOR PND |
| Парткод: | LS1548001 |
| Деталь: | PANEL COVER ASSY (SP), MFC7840W FOR PND |
| Парткод: | LS1548002 |
| Деталь: | RUBBER KEY L, DCP7032 FOR RUS, DCP7030 |
| Парткод: | LS0406002 |
| Деталь: | RUBBER KEY L, DCP7032 FOR PND, DCP7040/ DCP7045N |
| Парткод: | LS0406001 |
| Деталь: | RUBBER KEY L, MFC7320/ MFC7340 |
| Парткод: | LS0814001 |
| Деталь: | RUBBER KEY L, MFC7345N/ MFC7440N |
| Парткод: | LS0378001 |
| Деталь: | RUBBER KEY L, MFC7450 |
| Парткод: | LS0814002 |
| Деталь: | RUBBER KEY L, MFC7840N/ MFC7840W |
| Парткод: | LS0378002 |
| Деталь: | RUBBER KEY R, DCP7032 FOR RUS, DCP7030 |
| Парткод: | LS0407002 |
| Деталь: | RUBBER KEY R, DCP7032 FOR PND, DCP7040/ DCP7045N |
| Парткод: | LS0407001 |
| Деталь: | RUBBER KEY R, MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0380003 |
| Деталь: | RUBBER KEY R, MFC7440N/ MFC7450 |
| Парткод: | LS0380001 |
| Деталь: | RUBBER KEY R, MFC7840N/ MFC7840W |
| Парткод: | LS0380002 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR RUS |
| Парткод: | LS1750002 |
| Деталь: | PANEL DRESS COVER, MFC7340 EXCEPT FOR CHN |
| Парткод: | LS1009003 |
| Деталь: | PANEL DRESS COVER, MFC7345N |
| Парткод: | LS3323003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR US/ CAN/ UK/ BEL/ CHE/ ZAF/ GUL/ OCE/ PND/ EEU |
| Парткод: | LS0382001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR US/ CAN/ UK/ BEL/ CHE/ GUL/ OCE/ PND/ EEU |
| Парткод: | LS0812002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR UK/ BEL/ CHE/ ISR/ ZAF/ GUL/ PND/ EEU |
| Парткод: | LS0809003 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR GER/ AUS |
| Парткод: | LS1598003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR GER/ AUS |
| Парткод: | LS1374001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR GER/ AUS |
| Парткод: | LS1493002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR FRA |
| Парткод: | LS1599003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR FRA |
| Парткод: | LS1400001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR FRA |
| Парткод: | LS1507002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR NLD |
| Парткод: | LS1600003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR NLD |
| Парткод: | LS1403001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR NLD |
| Парткод: | LS1509002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR SPA |
| Парткод: | LS1601003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR SPA/ ARG/ CHL |
| Парткод: | LS1406001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR SPA/ ARG/ CHL |
| Парткод: | LS1511002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR ITA |
| Парткод: | LS1602003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR ITA |
| Парткод: | LS1418001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR ITA |
| Парткод: | LS1513002 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR POR |
| Парткод: | LS1603003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR POR |
| Парткод: | LS1421001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR POR |
| Парткод: | LS1515002 |
| Деталь: | PANEL DRESS COVER, MFC7340 FOR CHN |
| Парткод: | LS1839003 |
| Деталь: | PANEL DRESS COVER, MFC7450 FOR CHN |
| Парткод: | LS1929001 |
| Деталь: | PANEL DRESS COVER, MFC7840N FOR CHN |
| Парткод: | LS1970002 |
| Деталь: | PANEL DRESS COVER, MFC7450 FOR ASA/ IND |
| Парткод: | LS1049001 |
| Деталь: | PANEL DRESS COVER, MFC7840N FOR ASA/ IND |
| Парткод: | LS1051002 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR BRA |
| Парткод: | LS1532001 |
| Деталь: | PANEL DRESS COVER, MFC7840W FOR BRA |
| Парткод: | LS1535002 |
| Деталь: | PANEL DRESS COVER, MFC7340 FOR KOR |
| Парткод: | LS3067003 |
| Деталь: | PANEL DRESS COVER, MFC7450 FOR KOR |
| Парткод: | LS3070001 |
| Деталь: | PANEL DRESS COVER, MFC7320 FOR RUS |
| Парткод: | LS1604003 |
| Деталь: | PANEL DRESS COVER, MFC7440N FOR RUS |
| Парткод: | LS1570001 |
| Деталь: | PANEL PCB ASSY, DCP7030/ DCP7032/ DCP7040 EXCEPT FOR CHN |
| Парткод: | LT0202002 |
| Деталь: | PANEL PCB ASSY, DCP7045N |
| Парткод: | LT0202001 |
| Деталь: | PANEL PCB ASSY, MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 EXCEPT FOR CHN |
| Парткод: | LT0148002 |
| Деталь: | PANEL PCB ASSY, MFC7840N FOR ASA/ IND, MFC7840W |
| Парткод: | LT0148001 |
| Деталь: | PANEL PCB ASSY, DCP7030/ DCP7040 FOR CHN |
| Парткод: | LT0617001 |
| Деталь: | PANEL PCB ASSY, MFC7340/ MFC7450/ MFC7840N FOR CHN |
| Парткод: | LT0409001 |
| Деталь: | LCD, DCP7030/ DCP7032/ DCP7040/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 EXCEPT FOR CHN |
| Парткод: | LT0149001 |
| Деталь: | LCD, DCP7045N/ MFC7840W, MFC7840N FOR ASA/ IND |
| Парткод: | LT0533001 |
| Деталь: | LCD, DCP7030/ DCP7040/ MFC7340/ MFC7450/ MFC7840N FOR CHN |
| Парткод: | LT0502001 |
| Деталь: | BACK LIGHT GUIDE, DCP7045N/ MFC7840N/ MFC7840W, DCP7030/ DCP7040/ MFC7340/ MFC7450 FOR CHN |
| Парткод: | LS1940001 |
| Деталь: | DIFFUSION FILM, DCP7030/ DCP7040/ MFC7340/ MFC7450 FOR CHN, DCP7045N/ MFC7840N/ MFC7840W |
| Парткод: | LF6188001 |
| Деталь: | TAPTITE CUP B M3X8, MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450/ MFC7840N/ MFC7840W |
| Парткод: | 87310816 |
| Деталь: | BACK LIGHT GUIDE, DCP7045N/ MFC7840W |
| Парткод: | LS0384001 |
| Деталь: | MAIN FRAME L ASSY, DCP7030/ DCP7032/ DCP7040/ MFC7320/ MFC7340 |
| Парткод: | LS0614001 |
| Деталь: | MAIN FRAME L ASSY, DCP7045N/ MFC7345N/ MFC7440N |
| Парткод: | LS0613001 |
| Деталь: | MAIN FRAME L ASSY, MFC7840N/ MFC7840W |
| Парткод: | LS0310001 |
| Деталь: | MAIN FRAME L ASSY, MFC7450 |
| Парткод: | LS1747001 |
| Деталь: | RUBBER FOOT |
| Парткод: | LJ7403001 |
| Деталь: | FILTER 2 ASSY |
| Парткод: | LU0922001 |
| Деталь: | COVER SENSOR HARNESS ASSY |
| Парткод: | LU2125001 |
| Деталь: | FAN MOTOR 60 UNIT |
| Парткод: | LU2126001 |
| Цена: | 1 700 ₽ |
| Деталь: | TONER LED PCB ASSY |
| Парткод: | LV0066001 |
| Деталь: | LED HOLDER |
| Парткод: | LM4267001 |
| Деталь: | WIRELESS LAN PCB ASSY, MFC7840W |
| Парткод: | LT0963001 |
| Деталь: | FEEDER GEAR 17 TERMINAL |
| Парткод: | LU2128001 |
| Деталь: | REGISTRATION GEAR 25 TERMINAL |
| Парткод: | LU2129001 |
| Деталь: | EJECT SENSOR PCB ASSY |
| Парткод: | LV0060001 |
| Деталь: | TONER SENSOR PCB UNIT ASSY |
| Парткод: | LT0129001 |
| Деталь: | TAPTITE BIND B M3X10 |
| Парткод: | 85311016 |
| Деталь: | T1 SOLENOID |
| Парткод: | LU2030001 |
| Цена: | 900 ₽ |
| Деталь: | REGISTRATION SOLENOID |
| Парткод: | LU2036001 |
| Деталь: | NEW TONER SENSOR HARNESS ASSY |
| Парткод: | LT0131001 |
| Деталь: | DRIVE SUB ASSY (SP) |
| Парткод: | LU3074001 |
| Деталь: | TAPTITE BIND B M4X12 |
| Парткод: | 85411216 |
| Деталь: | TAPTITE CUP S M3X6 SR |
| Парткод: | LM5867001 |
| Деталь: | THERMISTOR HARNESS UNIT |
| Парткод: | LT0132001 |
| Деталь: | REGISTRATION PENDULUM GEAR SPRING |
| Парткод: | LU2060001 |
| Деталь: | DEV GEAR JOINT/ 53R |
| Парткод: | LU2067001 |
| Цена: | 270 ₽ |
| Деталь: | LASER UNIT (SP) |
| Парткод: | LU2375001 |
| Цена: | 15 800 ₽ |
| Деталь: | TAPTITE CUP S M3X6 SR |
| Парткод: | LM5867001 |
| Деталь: | TAPTITE PAN(S/P WASHER)S M3X8 |
| Парткод: | LJ0748001 |
| Деталь: | LASER CAUTION LABEL EXCEPT FOR CHN |
| Парткод: | LJ0908001 |
| Деталь: | LASER CAUTION LABEL FOR CHN |
| Парткод: | UL7931001 |
| Деталь: | PAPER TRAY UNIT, DCP7030 FOR US/ CAN/ ASA/ GUL/ KOR/ IND/ OCE, DCP7040/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 FOR US/ CAN/ ARG/ CHL/ ASA/ BRA/ KOR/ IND/ OCE |
| Парткод: | LS0686001 |
| Деталь: | PAPER TRAY UNIT, MFC7840N FOR ASA/ IND, MFC7840W FOR US/ CAN/ ARG/ CHL/ BRA/ OCE |
| Парткод: | LS0686002 |
| Деталь: | PAPER TRAY UNIT, DCP7030 FOR GER/ UK/ CHE/ ITA/ CHN/ RUS/ PND/ FRA/ BEL/ NLD/ IBR/ EEU, DCP7032/ DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7440N/ MFC7450 FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ ISR/ POR/ CHN/ ZAF/ GUL/ RUS/ PND/ IBR/ EEU |
| Парткод: | LS0687001 |
| Деталь: | PAPER TRAY UNIT, MFC7840N FOR CHN, MFC7840W FOR GER/ UK/ FRA/ BEL/ NLD/ CHE/ AUS/ SPA/ ITA/ POR/ GUL/ RUS/ PND/ EEU |
| Парткод: | LS0687002 |
| Деталь: | SEPARATION PAD SPRING |
| Парткод: | LU3046001 |
| Деталь: | SEPARATION PAD ASSY(SP) |
| Парткод: | LU3157001 |
| Цена: | 1 400 ₽ |
| Деталь: | JOINT COVER ASSY, GRAY(1861), DCP7030 |
| Парткод: | LS0584003 |
| Деталь: | JOINT COVER ASSY, GRAY(1736), DCP7032/ DCP7040/ DCP7045N |
| Парткод: | LS0584001 |
| Деталь: | JOINT COVER ASSY, GRAY(1861), MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0318003 |
| Деталь: | JOINT COVER ASSY, GRAY(1736), MFC7440N/ MFC7450 |
| Парткод: | LS0318001 |
| Деталь: | JOINT COVER ASSY, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0318002 |
| Деталь: | JOINT COVER SUB CHUTE ASSY |
| Парткод: | LS0322001 |
| Деталь: | SPEAKER COVER, GRAY(1861), DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0325003 |
| Деталь: | SPEAKER COVER, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0325001 |
| Деталь: | SPEAKER COVER, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0325002 |
| Деталь: | SPEAKER UNIT |
| Парткод: | LT0133001 |
| Деталь: | FRONT COVER ASSY, DCP7030/ MFC7320/ MFC7340/ MFC7345N EXCEPT FOR CHN/ RUS |
| Парткод: | LS0326003 |
| Деталь: | FRONT COVER ASSY, DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 EXCEPT FOR CHN/ RUS |
| Парткод: | LS0326001 |
| Деталь: | FRONT COVER ASSY, MFC7840N FOR ASA/ IND, MFC7840W EXCEPT FOR RUS |
| Парткод: | LS0326002 |
| Деталь: | FRONT COVER ASSY, DCP7030/ MFC7340 FOR CHN |
| Парткод: | LS1625003 |
| Деталь: | FRONT COVER ASSY, DCP7040/ MFC7450 FOR CHN |
| Парткод: | LS1625001 |
| Деталь: | FRONT COVER ASSY, MFC7840N FOR CHN |
| Парткод: | LS1625002 |
| Деталь: | FRONT COVER ASSY, DCP7030/ MFC7320 FOR RUS |
| Парткод: | LS1628003 |
| Деталь: | FRONT COVER ASSY, DCP7032/ DCP7040/ DCP7045N/ MFC7440N FOR RUS |
| Парткод: | LS1628001 |
| Деталь: | FRONT COVER ASSY, MFC7840W FOR RUS |
| Парткод: | LS1628002 |
| Деталь: | INNER CHUTE ASSY, GRAY(1861), DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0331003 |
| Деталь: | INNER CHUTE ASSY, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0331001 |
| Деталь: | INNER CHUTE ASSY, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0331002 |
| Деталь: | FUSER COVER ASSY |
| Парткод: | LU2241001 |
| Деталь: | SIDE COVER L, GRAY(1581), DCP7030/ DCP7032/ DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 |
| Парткод: | LS0334001 |
| Деталь: | SIDE COVER L, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0334002 |
| Деталь: | SIDE COVER SUB L, GRAY(1861), DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0335003 |
| Деталь: | SIDE COVER SUB L, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0335001 |
| Деталь: | SIDE COVER SUB L, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0335002 |
| Деталь: | SIDE COVER R ASSY, GRAY(1581), DCP7030/ DCP7032/ DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 |
| Парткод: | LS0336001 |
| Деталь: | SIDE COVER R ASSY, GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS0336002 |
| Деталь: | OUTER CHUTE ASSY |
| Парткод: | LU0335001 |
| Деталь: | BACK COVER (SP), GRAY(1581), DCP7030/ DCP7032/ DCP7040/ DCP7045N/ MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450 |
| Парткод: | LS1234001 |
| Деталь: | BACK COVER (SP), GRAY(1736), MFC7840N/ MFC7840W |
| Парткод: | LS1234002 |
| Деталь: | CORNER COVER, GRAY(1861), DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS0339003 |
| Деталь: | CORNER COVER, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS0339001 |
| Деталь: | CORNER COVER, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0339002 |
| Деталь: | PULL ARM L |
| Парткод: | LF6145001 |
| Деталь: | PULL ARM R |
| Парткод: | LF6146001 |
| Деталь: | PULL ARM GUIDE |
| Парткод: | LS0340001 |
| Деталь: | LOCK CLAW |
| Парткод: | LF6148001 |
| Деталь: | PULL ARM SPRING ADF L |
| Парткод: | LP2575001 |
| Деталь: | PULL ARM SPRING ADF R |
| Парткод: | LP2904001 |
| Деталь: | CORD HOOK, MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450/ MFC7840N/ MFC7840W |
| Парткод: | LF6745001 |
| Деталь: | PROCESS UNIT OP LABEL FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LS1060001 |
| Деталь: | PROCESS UNIT OP LABEL EXCEPT FOR US/ CAN/ ARG/ CHL/ BRA |
| Парткод: | LS1116001 |
| Деталь: | HEATER CAUTION LABEL REAR |
| Парткод: | LS0888001 |
| Деталь: | TAPTITE BIND B M4X12 |
| Парткод: | 85411216 |
| Деталь: | TAPTITE CUP B M3X8 |
| Парткод: | 87310816 |
| Деталь: | MJ COVER EXT, MFC7320/ MFC7340/ MFC7345N/ MFC7440N/ MFC7450/ MFC7840N/ MFC7840W FOR US/ CAN/ NLD/ CHE/ SPA/ ISR/ POR/ CHN/ ZAF/ ARG/ CHL/ ASA/ GUL/ BRA/ KOR/ IND/ RUS/ OCE/ PND/ EEU |
| Парткод: | LE8842001 |
| Деталь: | MJ COVER EXT, MFC7320/ MFC7440N/ MFC7840W FOR GER/ UK/ FRA/ BEL/ AUS/ ITA |
| Парткод: | UF5745000 |
| Деталь: | LABEL REAR CHUTE |
| Парткод: | LU2935001 |
| Деталь: | PAPER STOPPER L, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC745C |
| Парткод: | LS0329001 |
| Деталь: | PAPER SUPPORTER, GRAY(1861), DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS1083003 |
| Деталь: | PAPER SUPPORTER, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS1083001 |
| Деталь: | PAPER SUPPORTER, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS1083002 |
| Деталь: | EJECT ROLLER ASSY |
| Парткод: | LU2262001 |
| Деталь: | PAPER STOPPER L, GRAY(1861), DCP7030/ MFC7320/ MFC7340 |
| Парткод: | LS0329003 |
| Деталь: | PAPER STOPPER L, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0329002 |
| Деталь: | PAPER STOPPER S, GRAY(1861), DCP7030/ MFC7320/ MFC7340 |
| Парткод: | LS0330003 |
| Деталь: | PAPER STOPPER S, GRAY(1736), DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC745e |
| Парткод: | LS0330001 |
| Деталь: | PAPER STOPPER S, GRAY(1581), MFC7840N/ MFC7840W |
| Парткод: | LS0330002 |
| Деталь: | PAPER STOPPER FB ASSY, DCP7030/ MFC7320/ MFC7340/ MFC7345N |
| Парткод: | LS3214003 |
| Деталь: | PAPER STOPPER FB ASSY, DCP7032/ DCP7040/ DCP7045N/ MFC7440N/ MFC7450 |
| Парткод: | LS3214001 |
| Деталь: | PAPER STOPPER FB ASSY, MFC7840N/ MFC7840W |
| Парткод: | LS3214002 |
| Деталь: | PINCH ROLLER R ASSY |
| Парткод: | LU2234001 |
| Деталь: | PINCH ROLLER L ASSY |
| Парткод: | LU2237001 |
| Деталь: | EJECT ACTUATOR |
| Парткод: | LU2243001 |
| Деталь: | EJECT ACTUATOR SPRING |
| Парткод: | LM5282001 |
Коды ошибок
50
56
58
59
5A
5B
63
67
68
69
6A
6B
6C
6D
6E
6F
71
72
75
76
77
78
79
7A
7B
7D
7F
80
84
88
8A
8D
9F
A1
A2
A3
A5
A6
AD
AF
B0
B7
B9
BB
E6
EC
F8
F9
Описание
| Error code: | 50 |
| Display: | Tray 2 Paper Empty |
| Description: | Fuser Fan Failure The Fuser Fan rotation signal indicates to the Engine Control Board that the fan is no longer operational. |
| Causes: | • Fuser Fan, PL5.3.31 • FAN/PHD/MOT Harness, PL10.1.9 • Engine Control Board, PL9.1.16 |
| Remedy: | 1 Check the Fuser Fan for damage. Remove the Front Cover. Is the fan damaged? Replace the Fuser Fan. Go to Step 2. 2 Check the Fuser Fan connection. Is P/J482 connected to the harness? Go to Step 2. Reconnect the Fan. 3 Check orientation of the Fuser Fan. Does the Fan’s label face into the chute? Go to Step 3. Correct the installation. 4 Test the Fuser Fan. Run the Service Diagnostics Fuser Fan test. Does the Fan operate. Go to Step 6. Go to Step 5. 5 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J482. 2. Check continuity between J48 <=> P483. Go to Step 5. Replace the FAN/PHD/MOT Harness. 6 Check the fan rotation signal. Print one sheet. Is there +3.3 V across P/J48-A12 <=> P/J48-A13? Replace the Engine Control Board. Replace the Fuser Fan. |
| Error code: | 56 |
| Display: | Toner Empty |
| Description: | The toner cartridge has run out. The machine stops printing. |
| Causes: | Harness connection failure of back cover switch ASSY. Eject actuator failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Replace the toner cartridge with a new one. |
| Error code: | 58 |
| Display: | Tray 1 Paper Empty |
| Description: | There is no paper in the tray 1. |
| Causes: | Harness connection failure between fuser unit and eject sensor PCB. Fuser unit failure. LVPS PCB failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Load paper in the tray 1. |
| Error code: | 59 |
| Display: | Tray 2 Paper Empty |
| Description: | There is no paper in the optional tray 2. |
| Causes: | Harness connection failure between fuser unit and eject sensor PCB. Fuser unit failure. LVPS PCB failure. Eject sensor PCB ASSY failure. Main PCB failure |
| Remedy: | Load paper in the optional tray 2. |
| Error code: | 5A |
| Display: | Unable to print 5A |
| Description: | HVPS PCB failure (Developing bias voltage failure) |
| Causes: | HVPS PCB ASSY harness connection failure. HVPS PCB failure. Main PCB failure |
| Remedy: | 1 HVPS PCB ASSY harness connection failure Check the harness connection between the HVPS PCB and main PCB. Then, reconnect them. 2 HVPS PCB failure Replace the HVPS PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 5B |
| Display: | Unable to print 5B |
| Description: | New toner detection lever malfunction |
| Causes: | New toner detection switch harness connection failure. New toner detection switch failure. Main PCB failure |
| Remedy: | 1 New toner detection switch harness connection failure Check the harness connection of the new toner detection switch. Then, reconnect it. 2 New toner detection switch failure Replace the new toner harness ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 63 |
| Display: | Toner Exhausted |
| Description: | HOST_IF_NO_DRIVER:PCI |
| Causes: | Harness connection failure of new toner sensor harness ASSY. Harness connection failure of toner sensor PCB unit ASSY. New toner sensor harness ASSY failure (Toner empty). Toner sensor PCB unit ASSY failure. Main PCB failure. |
| Remedy: | You can select either stop or continue. It you do not select any, the printer will as stop is selected. If you select stop, you cannot print untill the genuine cartridge is installed. If you select continue, you can keep printing but the guality cannot be guaranteed, and the product svpport is no longer provided. If you wunt to change the selection, turn the printer off and on to gave this message apper again, and then re-select stop or continue. |
| Error code: | 67 |
| Display: | TOP BIN FULL |
| Description: | Orange light on The top bin is full of papers. Remove papers from the top bin. |
| Causes: | Toner sensor PCB ASSY failure. Main PCB failure |
| Remedy: | 1) Check the harness connected between the Engine controller and the exit board. (If the harness is out, insert it to the connector.) 2) In the Engine diagnostic mode, operate the full_R sensor to check if the sensor is operating. (If it is not operating, replace the exit board.) 3) Check the damage or warping of the sensor actuator. (If it is damaged or warped, replace the top bin full sensor.) 4) Replace the Engine controller. |
| Error code: | 68 |
| Display: | TOP FAN MOTOR LOCK ERROR |
| Description: | Orange light on An error has occurred at the top fan. |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1) Check the harness connected between the Engine controller and the exit board. (If the harness is out, insert it to the connector.) 2) Check the harness connected between the exit board and the top fan. (If the harness is out, insert it to the connector.) 3) In the Engine diagnostic mode, operate the top fan to check the fan is operating. (If it is not operating, replace the top fan.) 4) Check the No. 1 pin of the exit board whether 24V is outputted and check the D5 whether it is normal. (If 24V is not outputted or the part is abnormal, replace the exit board.) 5) Replace the Engine controller. |
| Error code: | 69 |
| Display: | Sleep Mode |
| Description: | Sleep Mode |
| Causes: | It means that the printer fuser is turned off, and the power consumption is minimized. |
| Remedy: | 1) Check the harness connected between the Engine controller and the paper size board. (If the harness is out, insert it to the connector.) 2) In the Engine diagnostic mode, operate the MPF trans sensor to check if it is operating. (If it is not operating, replace the paper size board.) 3) Replace the MPF transfer. |
| Error code: | 6A |
| Description: | Fuser unit failure (The side thermistor does not detect 60°C within the specified time.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6B |
| Description: | Fuser unit failure (The center thermistor does not detect 100°C within the specified time.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6C |
| Display: | Unable to Print 6C |
| Description: | Fuser unit failure (The center thermistor detects higher temperature than the specified value.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6D |
| Description: | Fuser unit failure (The center thermistor detects lower temperature than the specified value.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6E |
| Description: | Fuser unit failure (The center thermistor does not detect temperature rising within the specified time.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 6F |
| Display: | Unable to Print 6F |
| Description: | Fuser unit failure (The center and side thermistors detect extremely high temperature.) |
| Causes: | Fuser unit harness connection failure. Fuser unit failure. LVPS PCB unit failure. Main PCB failure. |
| Remedy: | 1 Fuser unit harness connection failure Check the harness connection of the fuser unit and reconnect it. 2 Fuser unit failure Replace the fuser unit. 3 LVPS PCB unit failure Replace the LVPS PCB unit. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 71 |
| Display: | Paper Jam 0 |
| Description: | Paper Jam 0 |
| Causes: | The front part of paper is jammed between pickup unit and Feed sensor. |
| Error code: | 72 |
| Display: | Paper Jam 1 |
| Description: | Engine Firmware Failure The Engine Control Board detected a firmware error. |
| Causes: | • Engine Control Board, Pl9.1.16 • EEPROM Board, PL9.1.12 |
| Remedy: | 1 Cycle printer power. Does the error persist? Go to Step 2. Complete 2 Is P/J144 on the EEPROM Board properly seated and defect free? Go to Step 3. Reseat P/J144 or replace the EEPROM Board. 3 Turn printer power off and then back on. Does the error persist? Replace the Engine Control Board. Complete |
| Error code: | 75 |
| Display: | [TRAY x] NOT INSTALLED |
| Description: | VIC Limutter |
| Causes: | · Loose cable connection · Defective fusing unit clutch · Defective IOD2 board · Defective MCTL board |
| Remedy: | 1) Check for any warping or damage to the cassette (In the case of warping or damage, replace the cassette) |
| Error code: | 76 |
| Display: | Out Bin Full |
| Description: | Fuser Firmware Failure A failure was detected in the Fuser Firmware. |
| Causes: | • Fuser, PL5.1.1 • FSR/ADC Harness, PL5.2.28 • Engine Control Board, PL9.1.16 |
| Remedy: | 1 Check the Fuser for damage. Is the Fuser damaged? Replace the Fuser. Go to Step 2. 2 Check the Fuser connection for damage. Any broken or bent pins? Repair or replace the parts. Go to Step 3. 3 Replace the Fuser. Does the error persist? Go to Step 4. Complete 4 Check all pins on the FSR/ADC Harness PL5.2.28 for continuity. 1. Disconnect P/J36 and P/J361. 2. Check continuity between J36 <=> J361. Replace the Engine Control Board. Replace the FSR/ ADC Harness. |
| Error code: | 77 |
| Display: | WAIT IMAGE |
| Description: | Image Density Failure The engine detected a low-density image condition. |
| Causes: | • Transfer Roller, PL5.1.4 • CTD (ADC) Sensor PL5.2.19 • Engine Control Board PL9.1.16 • FSR/ADC Harness PL5.2.28 |
| Remedy: | 1 Clean the CTD (ADC) Sensor. Does the error persist? Go to Step 2. Complete 2 Check the following for evidence of fault or damage: Transfer Roller Assembly, PL5.1.4 CTD (ADC) Sensor, PL5.2.19 Replace any damaged parts. Go to Step 3. 3 Check the CTD (ADC) Sensor connector. Is P/J136 connected to the harness? Go to Step 4. Reseat the connector to the sensor. 4 Replace the CTD (ADC) Sensor. Does the error persist? Go to Step 5. Complete 5 Check all pins on the FSR/ADC Harness PL5.2.28 for continuity. 1. Disconnect P/J36 and P/J136 2. Check continuity between J36 <=> J136 Replace the Engine Control Board Replace the FSR/ ADC Harness. |
| Error code: | 78 |
| Display: | WRONG PAPER SIZE [PAPER] IN [TRAY x] |
| Description: | Waste Cartridge Full Detection Sensor Failure, Code 78 |
| Causes: | • Waste Cartridge • Waste Cartridge Full Sensor • Engine Control Board |
| Remedy: | 1 1. Remove the waste cartridge sensor holder without disconnecting the harnesses. 2. Measure the voltage between the yellow wire on the waste cartridge full sensor and frame ground, alternately interrupting the sensor. 3. Does the voltage toggle between +5 and 0 VDC? Go to step 5. Go to step 2. 2 1. Measure the voltage between the gray wire and frame ground. 2. Does the voltage measure +5 VDC? Go to step 4. Go to step 3. 3 1. Remove the rear cover and rear shield. 2. Measure the voltage at J407B-17 on the engine control board. 3. Does the voltage measure +5 VDC? Inspect the wiring harness for damage and replace, if necessary. Replace the engine control board. 4 1. Measure the voltage between the violet wire and frame ground. 2. Does the voltage measure 0 VDC? Replace the waste cartridge full sensor. Inspect the wiring harness for damage and replace, if necessary. 5 1. Remove the rear cover and rear shield. 2. Measure the voltage at J407B-16 on the engine control board. 3. Alternately interrupt the sensor 4. Does the voltage toggle between +5 and 0 VDC? Replace the engine control board. Inspect the wiring harness for damage and replace, if necessary. |
| Error code: | 79 |
| Display: | 79 |
| Description: | No detection of the internal temperature thermistor. |
| Causes: | Harness connection failure of internal temperature thermistor. Internal temperature thermistor failure. Main PCB failure |
| Remedy: | 1 Harness connection failure of internal temperature thermistor Check the harness connection of the internal temperature thermistor, and reconnect it. 2 Internal temperature thermistor failure Replace the internal temperature thermistor. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7A |
| Display: | Unable to clean 7A |
| Description: | No detection of the main motor lock signal. |
| Causes: | Main motor failure. Main PCB failure. |
| Remedy: | 1 Main motor failure Replace the main motor ASSY. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7B |
| Display: | Unable to clean 7B |
| Description: | Main PCB failure |
| Causes: | Main PCB failure |
| Remedy: | 1 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7D |
| Display: | Unable to clean 7D |
| Description: | Dirt on drum unit |
| Causes: | Dirt or dust on drum unit electrodes. HVPS PCB failure. Main PCB failure. |
| Remedy: | 1 Dirt or dust on drum unit electrodes Clean the electrodes on the drum unit. ( p.271 "Electrodes location on the drum unit") 2 HVPS PCB failure Replace the HVPS PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 7F |
| Description: | Fax paper setting mismatch (The setting paper becomes besides the A4/Letter/Legal/Folio.) |
| Causes: | Main PCB failure |
| Remedy: | 1 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 80 |
| Display: | ERROR 80 FORMAT |
| Description: | Engine Logic Board Failure, Code 80 |
| Remedy: | 1. Cycle power to the printer to clear the error. 2. Did this clear the error? Complete Replace the engine control board or the image processor board. |
| Error code: | 84 |
| Display: | h`******** |
| Description: | Controller to Engine Logic Board Time Failure, Code 84 |
| Remedy: | 1. Cycle power to the printer to clear the error. 2. Did this clear the error? Complete. Replace the engine control board. |
| Error code: | 88 |
| Display: | Paper Jam |
| Description: | Lower Tray Communication Failure, Code 88 |
| Causes: | • Engine Control Interface Board • Tray module board • Engine Control board |
| Remedy: | 1 Is J668-1 on the tray module board +5 VDC? Go to step 2. Use the wirenets to troubleshoot and repair the open wire. 2 Is J668-3 on the tray module board +24 VDC? Go to step 3. Use the wirenets to troubleshoot and repair the open wire. 3 1. Check the following connectors for continuity: • P669-1 to J534A-15 • P669-2 to J534A-14 • P669-3 to J534A-13 • P669-4 to J534A-12 • P669-5 to J534A-11 • P669-6 to J534A-10 2. Do all checks indicate continuity? Replace in the following order: • engine control interface board • tray module board • engine control board Check and repair broken wires or bad connectors. |
| Error code: | 8A |
| Display: | Paper Jam |
| Description: | Paper jam in Tray 1 (T1) (It is detects by the registration front sensor) |
| Causes: | Harness connection failure of registration front sensor PCB ASSY. Paper feed roller worn out. Registration front sensor PCB failure. Main PCB failure. |
| Remedy: | 1 Harness connection failure of registration front sensor PCB ASSY Check the harness connection of the registration front sensor PCB ASSY in the appropriate tray, and reconnect it. 2 Paper feed roller worn out Replace the paper feed roller. 3 Registration front sensor PCB failure Check the sensor performance following the procedure ( p.183 "Operational Check of Sensors (Function code 32)"). If any problem occurs, replace the registration front sensor PCB ASSY. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 8D |
| Description: | Paper jam near paper eject tray (When power on, it is detects by the eject sensor.) |
| Causes: | Paper eject actuator not operating smoothly catching in some position. Eject sensor PCB ASSY failure. Main PCB failure. |
| Remedy: | 1 Paper eject actuator not operating smoothly catching in some position. Re-assemble the paper eject actuator. Ensure the paper eject sensor operates smoothly. 2 Eject sensor PCB ASSY failure Replace the eject sensor PCB ASSY. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | 9F |
| Display: | Paper Jam |
| Description: | Paper empty (It is detects by the registration front sensor) |
| Causes: | Registration front actuator catching in some position. Registration front sensor PCB harness connection failure. Registration front sensor PCB failure. Main PCB failure. |
| Remedy: | 1 Registration front actuator catching in some position Re-assemble the registration front actuator. 2 Registration front sensor PCB harness connection failure Check the harness connection of the registration front sensor PCB and reconnect it. 3 Registration front sensor PCB failure Replace the registration front sensor PCB. 4 Main PCB failure Replace the main PCB ASSY. |
| Error code: | A1 |
| Display: | Cover is Open |
| Description: | Jam at Door A |
| Causes: | • Tray 1 (MPT) Feed Roller, PL10.1.53 • Tray 1 (MPT) Pick Roller, PL10.1.43 • Tray 1 (MPT) Retard Roller, PL10.1.16 • Registration Clutch #1, PL8.1.85 • Tray 2 Registration Motor, PL4.2.36 • Tray 2 Feed Motor, PL4.2.35 • Front Sensor Board, PL4.2.97 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Tray 1 (MPT) Feed Rollers • Registration Rollers • Sensor Actuator Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Registration #1 Sensor. Run the Service Diagnostics Registration Entrance Sensor test. Does the sensor operate correctly? Go to Step 3. Replace the actuator. If the error persists, replace the Front Sensor Board. 3 Test the Feed Motor, Registration Motor, and Registration Clutch #1. Do the components function correctly? Replace the Engine Control Board. Go to Step 4. 4 Check the harness for each motor and clutch. Are the wiring harnesses properly connected and free from defects? Replace the Engine Control Board. Replace the wiring harness and/or the problem motor/ clutch. |
| Error code: | A2 |
| Display: | DOCUMENT JAM |
| Description: | Jam at Door A |
| Causes: | • Duplex Unit, PL16.1.0 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Door A • Door D • Duplex Unit Rollers • Duplex Unit connector • Duplex Sensors and Actuators Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Duplex Unit sensors. Run the Service Diagnostics for each of the four Duplex Unit sensors. Do the sensors and actuators function correctly Go to Step 3. Replace the damaged sensor. 3 Test the Duplex Unit motors. Run the Service Diagnostics Duplex Motor tests. Do the motors function correctly Go to Step 4. Replace the Duplex Unit 4 Inspect the wiring harness for the Duplex Unit. Is the wiring harness properly connected and free from defects? Replace the Duplex Unit. Replace the Engine Control Board. |
| Error code: | A3 |
| Display: | DOCUMENT JAM |
| Description: | Jam at Door A Misfeed at Tray 1 (MPT) Media reached the Duplex Reverse Sensor, but a second sheet was detected entering the feed path from Tray 1 (MPT). This error represents a misfeed jam for media fed from Tray 1 (MPT). |
| Causes: | • Tray 1 (MPT) Feed Roller, PL10.1.53 • Tray 1 (MPT) Pick Roller, PL10.1.43 • Tray 2 Registration Motor, PL4.2.36 • Tray 2 Feed Motor, PL4.2.35 • Front Sensor Board, PL4.2.97 |
| Remedy: | 1 Check the following for evidence of fault, dirt, debris, or damage: • Tray 1 (MPT) Feed Rollers • Registration Rollers • Sensor Actuator Is there any damage or debris? Clean or replace the appropriate parts. Go to Step 2. 2 Test the Registration #1 Sensor. Run the Service Diagnostics Registration Entrance Sensor test. Does the sensor operate correctly? Go to Step 3. Replace the actuator. If the error persists, replace the Front Sensor Board. 3 Test the Feed Motor, Registration Motor, and Registration Clutch #1. Do the components function correctly? Replace the Engine Control Board. Go to Step 4. 4 Check each motor and clutch harness. Are the harnesses properly connected and free from defects? Replace the Engine Control Board. Replace the harness and/or problem motor/ clutch. |
| Error code: | A5 |
| Display: | Unable to Scan A5 |
| Description: | ADF interlock |
| Causes: | Scanning failure. |
| Remedy: | 1 Scanning failure Turn the power switch off and on. Then, try scanning again. |
| Error code: | A6 |
| Display: | A6-Bypass Feeder Jam |
| Description: | Paper did not exit the Multi-sheet Bypass Feeder properly, causing a paper jam. Open Cover A and refer to the labels on the printer to clear the jam. |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1. Ensure the correct weight and type of paper is loaded in the feeder. Also ensure the paper is loaded correctly in the feeder. 2. Clean the bypass feeder’s pick roller. 3. Test the main feed motor as described in “Motor and clutch tests”. Replace the main feed motor. 5. Replace the engine controller board. |
| Error code: | AD |
| Description: | DMA transfer error |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY |
| Error code: | AF |
| Display: | Unable to Scan AF |
| Description: | FB unit home position failure |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | B0 |
| Description: | DIS (GI) could not detected. |
| Causes: | Scanner harness not connected correctly. Scanner harness broken. Main PCB failure |
| Remedy: | This may happen in some cases of bad line condition. Attempt the transmission again. |
| Error code: | B7 |
| Description: | Detection error of scanner (Scanning reference voltage adjustment malfunction.) |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | B9 |
| Description: | Scanning light adjustment error is detected. |
| Causes: | FB unit failure. Main PCB failure |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | BB |
| Description: | White level data error |
| Causes: | FB unit failure. Main PCB failure. |
| Remedy: | 1 FB unit failure Replace the FB unit. 2 Main PCB failure Replace the main PCB ASSY. |
| Error code: | E6 |
| Display: | SVC E6 ERROR |
| Description: | Right side interlock |
| Causes: | • If Position-A sensor cannot be detected (or keeps detecting) even though the Main motor encoder sensor signal is making the output after the Main motor is activated. |
| Remedy: | Confirm details of the error using the error code and correct the error. Then ask the remote party to transmit again. |
| Error code: | EC |
| Display: | Unable to print EC |
| Description: | ADF jam |
| Causes: | Harness connection failure of fan motor. Fan motor failure. Main PCB failure. |
| Remedy: | 1 Harness connection failure of fan motor Check the harness connection of the fan motor, and reconnect it. 2 Fan motor failure Replace the fan motor. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | F8 |
| Display: | Unable to Print F8 |
| Description: | No power to collator |
| Causes: | Battery harness connection failure. Battery exhausted. Main PCB failure. |
| Remedy: | 1 Battery harness connection failure Reconnect the battery harness. 2 Battery exhausted Replace the battery. 3 Main PCB failure Replace the main PCB ASSY. |
| Error code: | F9 |
| Description: | Collator bin home switch |
| Causes: | Turn the power off, when the Maintenance mode 74 is in progress. |
| Remedy: | 1 Turn the power off, when the Maintenance mode 74 is in progress. Implement the Maintenance mode 74 again. |
